CUI Devices PP3-002D — Wire-to-Board Connectors

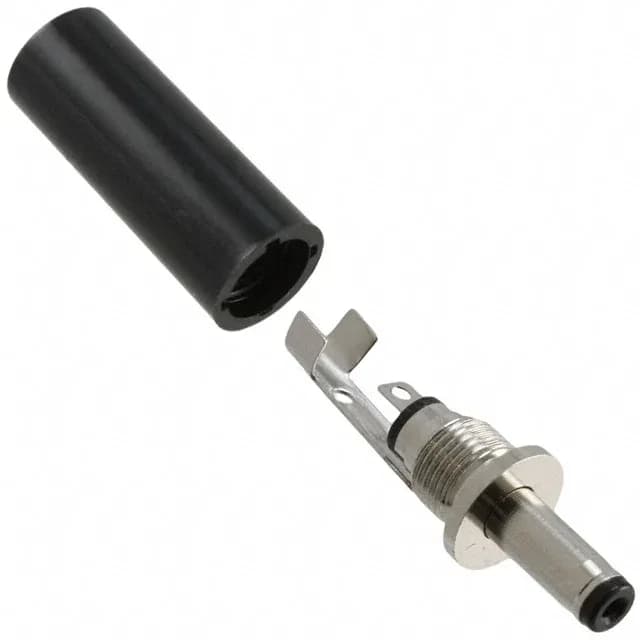

CUI Devices PP3-002D

MPNPP3-002D
Active

CONN PWR PLUG 1.35X3.5MM SOLDER

$1.4400Ref. price · indicative, final on quote
CUI Devices PP3-002D datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

PP3-002D key specifications
ParameterValue
MountingFree Hanging (In-Line)
Connector typePlug
Voltage - rated24VDC
Current rating5 A
Operating temperature0°C~40°C
Body colorSilver, Black
Body materialBrass
Contact materialBrass
Housing materialThermoplastic
Insulation colorBlack
Mating length (Depth)0.354\" (9.00mm)
Contact material - platingNickel

All specifications

PP3-002D additional specifications
ParameterValue
GenderFemale
PackageBag
Includes2 pcs - 1 Connector, 1 Handle
ShieldingUnshielded
TerminationSolder
Actual diameter0.053\" (1.35mm ID), 0.138\" (3.50mm OD)
Internal switchDoes Not Contain Switch
Number of positions (Contacts)2 Conductors, 2 Contacts
Industry recognized mating diameter1.35mm ID (0.053\"), 3.50mm OD (0.138\")
