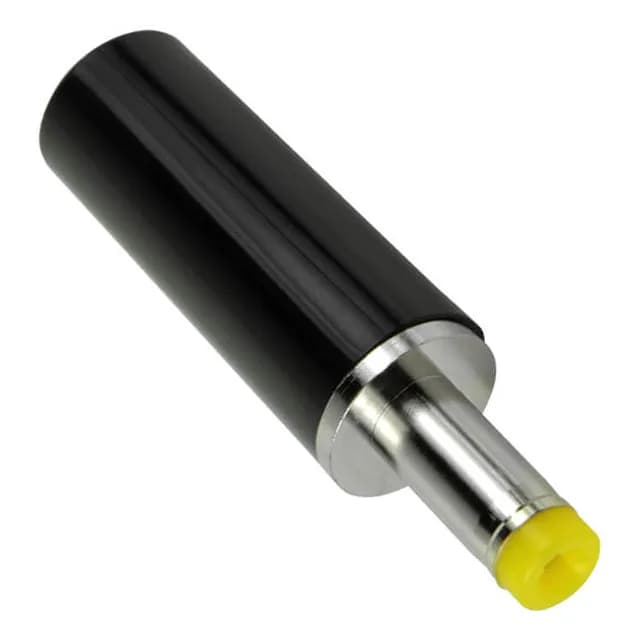

CUI Devices PP3-013
MPNPP3-013
Active
$1.4400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Voltage - rated | 20VDC |
| Current rating | 4 A |
| Operating temperature | -25°C~70°C |
| Body color | Silver, Black |
| Body material | Brass |
| Contact material | Phosphor Bronze |
| Housing material | Acrylonitrile Butadiene Styrene (ABS) |
| Insulation color | Yellow |
| Mating length (Depth) | 0.374\" (9.50mm) |
| Contact material - plating | Nickel |
All specifications
| Parameter | Value |
|---|---|
| Gender | Female |
| Package | Bag |
| Features | Cover |
| Includes | 2 pcs - 1 Connector, 1 Cover |
| Shielding | Unshielded |
| Termination | Solder Eyelet |
| Actual diameter | 0.067\" (1.70mm ID), 0.157\" (4.00mm OD) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 1.70mm ID (0.067\"), 4.00mm OD (0.157\") |
