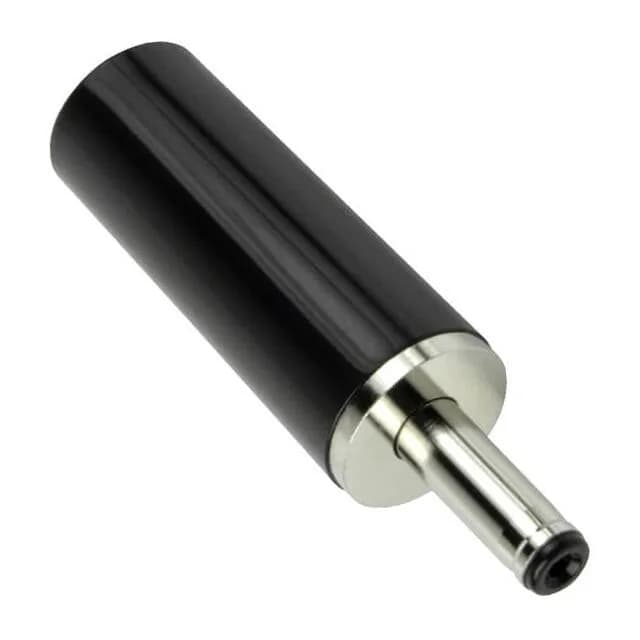

CUI Devices PP3-019
MPNPP3-019
Active
POWER PLUG, 1.1 X 3.0 X 9.0 MM,
$1.4400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Voltage - rated | 20VDC |
| Current rating | 2 A |
| Operating temperature | -25°C~70°C |
| Body color | Silver, Black |
| Body material | Brass |
| Contact material | Phosphor Bronze |
| Housing material | Acrylonitrile Butadiene Styrene (ABS) |
| Insulation color | Black |
| Mating length (Depth) | 0.354\" (9.00mm) |
| Contact material - plating | Nickel |
All specifications
| Parameter | Value |
|---|---|
| Gender | Female |
| Package | Bag |
| Features | Cover |
| Includes | 2 pcs - 1 Connector, 1 Cover |
| Shielding | Unshielded |
| Termination | Solder Eyelet |
| Actual diameter | 0.043\" (1.10mm ID), 0.118\" (3.00mm OD) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 1.10mm ID (0.043\"), 2.80mm OD (0.110\") |
