CUI Devices PPM-2-47517-SG
MPNPPM-2-47517-SG
Active

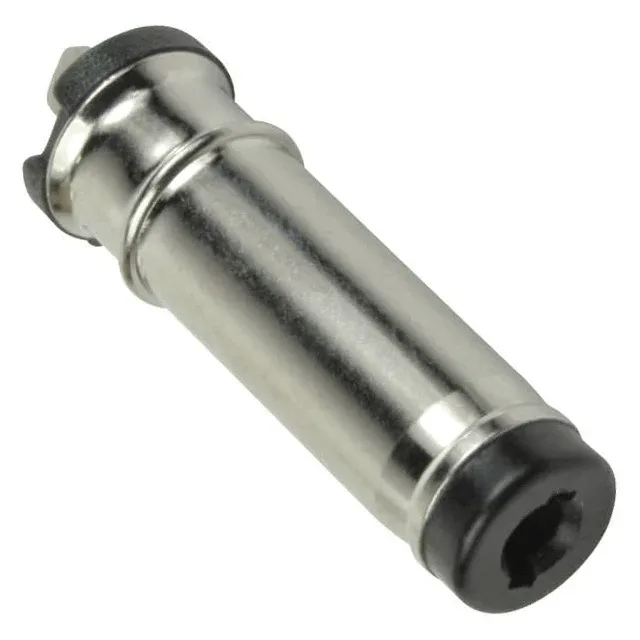

POWER PLUG, 1.7 X 4.75 X 20 MM,
$0.51Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Voltage - rated | 20VDC |
| Current rating | 6 A |
| Operating temperature | -25°C ~ 70°C |
| Body color | Silver |
| Body material | Brass |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Mating length (Depth) | 0.520\" (13.20mm) |
| Contact material - plating | Nickel |
| Gender | Female |
All specifications
| Parameter | Value |
|---|---|
| Package | Bag |
| Shielding | Unshielded |
| Termination | Solder Eyelet |
| Actual diameter | 0.067\" (1.70mm ID), 0.187\" (4.75mm OD) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 1.75mm ID (0.068\"), 4.75mm OD (0.187\") |
