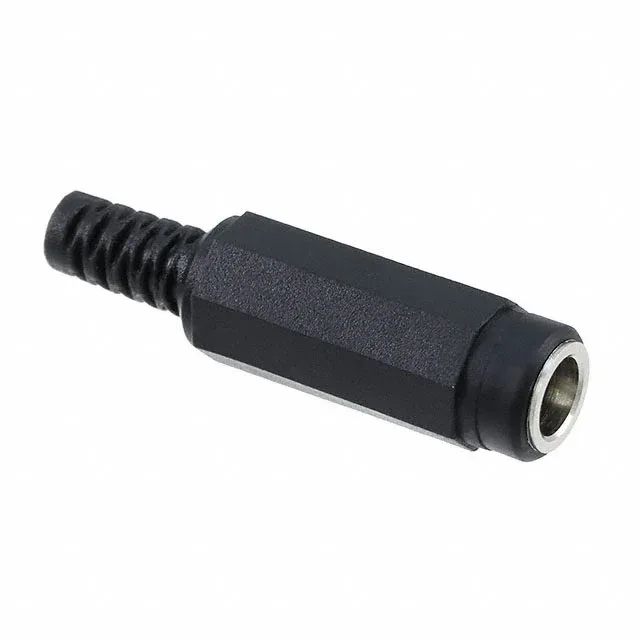

CUI Devices PR-002B
MPNPR-002B
Active
CONN PWR JACK 2.5X5.5MM SOLDER
$2.71Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Jack |
| Voltage - rated | 24VDC |
| Current rating | 4 A |
| Operating temperature | -25°C ~ 85°C |
| Body color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA), Nylon |
| Contact material - plating | Nickel |
| Gender | Male |
| Package | Bag |
| Features | Strain Relief |
All specifications
| Parameter | Value |
|---|---|
| Includes | 2 pcs - 1 Connector, 1 Handle |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Actual diameter | 0.093\" (2.35mm ID), 0.224\" (5.70mm OD) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 2.50mm ID (0.098\"), 5.50mm OD (0.217\") |
