$2.3300Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | "RCJ" |
| Mounting type | "Through Hole, Right Angle" |
| Connector type | "Phono (RCA) Jack" |
| Voltage - rated | "-" |
| Cable opening | "-" |
| Operating temperature | "-20°C~85°C" |
| Body color | "Silver" |
| Body material | "Steel" |
| Contact material | "Brass" |
| Housing material | "-" |
| Insulation color | "Black" |
| Mating length (Depth) | "-" |
| Contact material - plating | "Tin" |
| Gender | "Female" |
| Package | "Bag" |
| Features | "Board Lock" |
| Includes | "-" |
| Shielding | "Unshielded" |
| Termination | "Solder" |
| Thread size | "-" |
| Signal lines | "Mono" |
| Actual diameter | "0.142\" (3.60mm ID), 0.327\" (8.30mm OD)" |
| Panel hole size | "-" |
| Internal switch | "Does Not Contain Switch" |
| Number of positions (Contacts) | "2 Conductors, 2 Contacts" |
| Industry recognized mating diameter | "3.20mm ID, 9.00mm OD (RCA)" |
Sourcing this connector

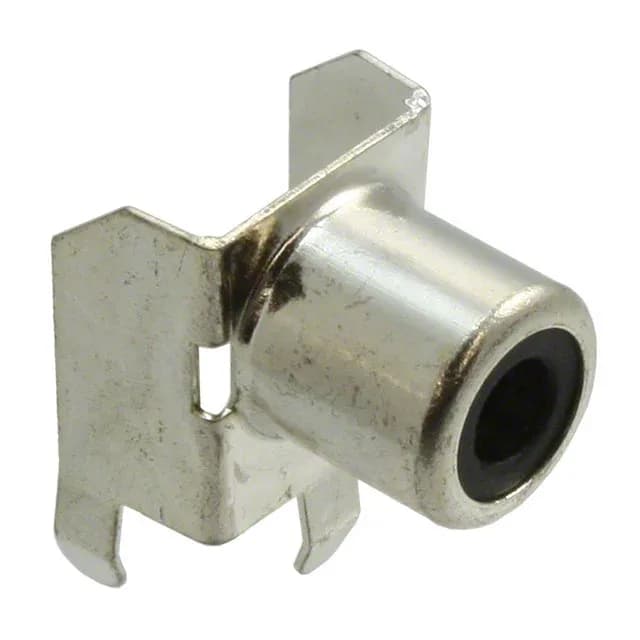

CUI Devices RCJ-011 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against CUI Devices and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
