CUI Devices RCJ-041 — Audio Connectors

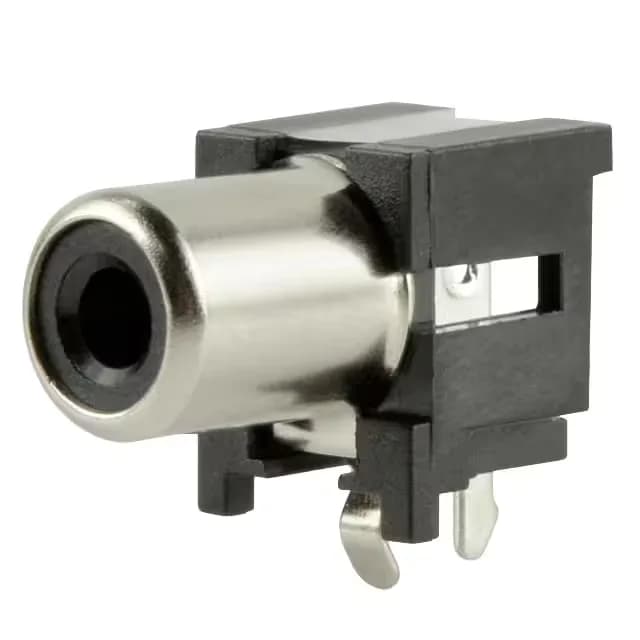

CUI Devices RCJ-041 RCA Jack, Mono, 3.2mm ID, R/A

MPNRCJ-041
Active

CUI Devices RCJ series phono (RCA) jack, order code RCJ-041, female, 2 conductors, 2 contacts, 3.20mm ID / 9.00mm OD industry recognized mating diameter, through-hole right-angle, solder termination, nickel-plated brass contacts, board lock, unshielded.

$1.6600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesRCJ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

RCJ-041 key specifications
ParameterValue
SeriesRCJ
MountingThrough Hole, Right Angle
Connector typePhono (RCA) Jack
Operating temperature-20°C~85°C
Body colorSilver, Black
Body materialBrass
Contact materialBrass
Housing materialPolyamide (PA66), Nylon 6/6
Insulation colorBlack
Contact material - platingNickel
GenderFemale
PackageBag

All specifications

RCJ-041 additional specifications
ParameterValue
FeaturesBoard Lock
ShieldingUnshielded
TerminationSolder
Signal linesMono
Actual diameter0.130\" (3.30mm ID), 0.327\" (8.30mm OD)
Internal switchDoes Not Contain Switch
Number of positions (Contacts)2 Conductors, 2 Contacts
Industry recognized mating diameter3.20mm ID, 9.00mm OD (RCA)

Product details

2-conductor RCA jack, right-angle through-hole

The RCJ-041 is the 2-conductor, 2-contact mono member of CUI Devices' RCJ phono jack series, accepting the standard 3.20mm ID / 9.00mm OD RCA plug. Rated for -20°C to 85°C operating range, the jack uses nickel-plated brass contacts and a polyamide (PA66) housing with a board lock for through-hole retention.

Board lock and internal switch absence

The RCJ-041 includes a board lock for mechanical retention during wave soldering but carries no internal switch — the normally-open contact path is uninterrupted when no plug is inserted.

Frequently asked questions

What compliance documentation does CUI Devices provide for RCJ-041?

The RCJ-041 is ROHS3 compliant.
