CUI Devices RCJ-042 — Audio Connectors

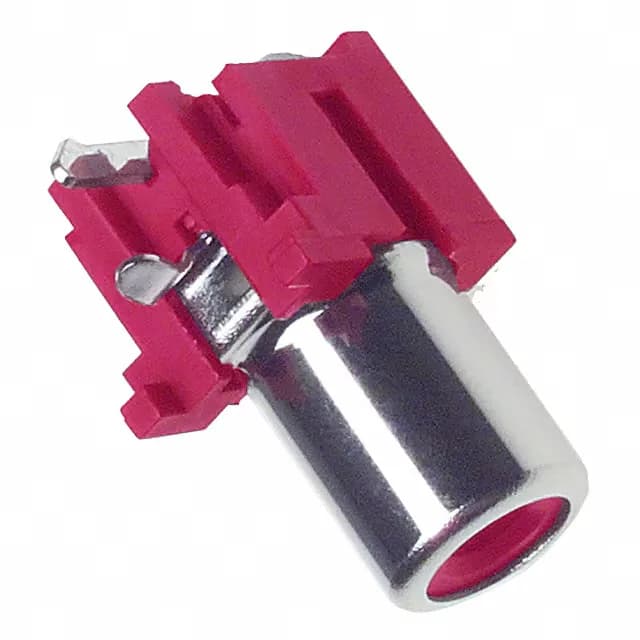

CUI Devices RCJ-042 RCA Jack, Mono, 3.2mm ID, R/A

MPNRCJ-042
Active

CUI Devices RCJ series phono (RCA) jack, order code RCJ-042, female, 2 conductors 2 contacts, 3.20mm ID 9.00mm OD industry recognized mating diameter, through-hole right-angle, solder termination, nickel-plated brass contacts, unshielded.

$1.6600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesRCJ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

RCJ-042 key specifications
ParameterValue
SeriesRCJ
MountingThrough Hole, Right Angle
Connector typePhono (RCA) Jack
Operating temperature-20°C~85°C
Body colorSilver, Red
Body materialBrass
Contact materialBrass
Housing materialPolyamide (PA66), Nylon 6/6
Insulation colorRed
Contact material - platingNickel
GenderFemale
PackageBag

All specifications

RCJ-042 additional specifications
ParameterValue
FeaturesBoard Lock
ShieldingUnshielded
TerminationSolder
Signal linesMono
Actual diameter0.130\" (3.30mm ID), 0.327\" (8.30mm OD)
Internal switchDoes Not Contain Switch
Number of positions (Contacts)2 Conductors, 2 Contacts
Industry recognized mating diameter3.20mm ID, 9.00mm OD (RCA)

Product details

RCA jack, 2-conductor mono, right-angle PCB mount

The RCJ-042 is the 2-conductor mono member of CUI Devices' RCJ phono jack series, accepting the standard 3.20mm ID / 9.00mm OD RCA plug. It mounts through-hole right-angle with solder termination; the nickel-plated brass contacts and brass body are housed in a PA66 insulator rated -20°C to 85°C.

Board lock and unshielded construction

A board lock secures the jack during reflow and against cable strain; the unshielded body and absence of internal switches suit simple mono audio paths where shielding is not required.

Frequently asked questions

What is the industry recognized mating diameter for RCJ-042?

The jack accepts a standard RCA plug with 3.20mm inner diameter and 9.00mm outer diameter.

What compliance documentation does CUI Devices provide for RCJ-042?

RCJ-042 is RoHS3 compliant; no UL or IEC certification is listed in the product record.
