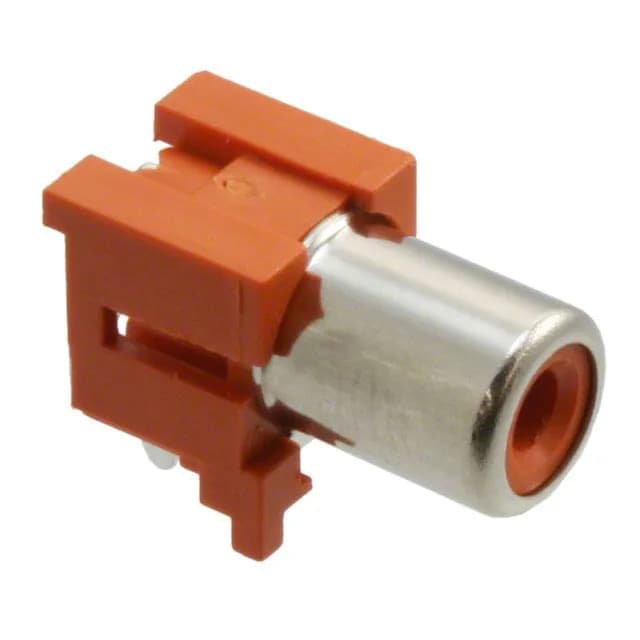

RCA jack with board lock and right-angle mount
The RCJ-047: Nickel-plated brass contacts mate with the standard 3.20mm ID / 9.00mm OD RCA plug; the unshielded brass body and orange PA66 housing are rated for -20°C to 85°C operation.
RCJ-047 RCA Jack, Mono, 3.20mm ID, Right Angle, Through Hole
MPNRCJ-047
Active
RCJ series phono (RCA) jack, order code RCJ-047, female, mono, 2 conductors, 2 contacts, 3.20mm ID / 9.00mm OD mating diameter, nickel-plated brass contacts, through-hole right-angle, solder termination, board lock.
$1.6600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesRCJ
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | RCJ |
| Mounting | Through Hole, Right Angle |
| Connector type | Phono (RCA) Jack |
| Operating temperature | -20°C~85°C |
| Body color | Silver, Orange |
| Body material | Brass |
| Contact material | Brass |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation color | Orange |
| Contact material - plating | Nickel |
| Gender | Female |
| Package | Bag |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Lock |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Mono |
| Actual diameter | 0.130\" (3.30mm ID), 0.327\" (8.30mm OD) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 3.20mm ID, 9.00mm OD (RCA) |
