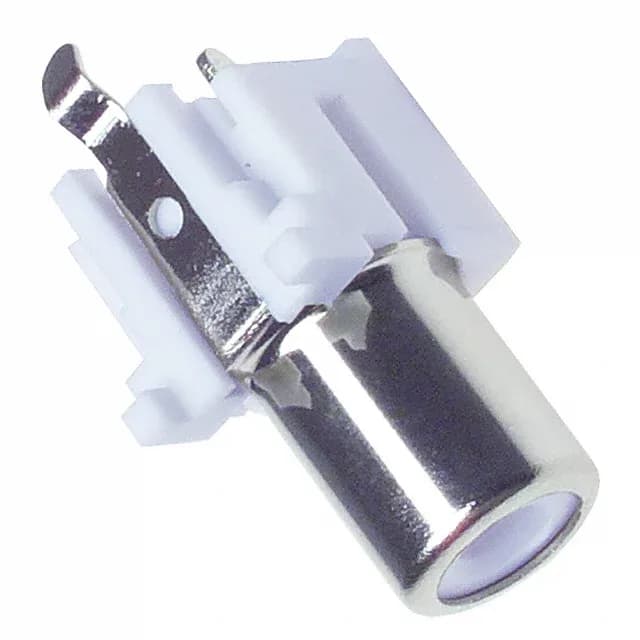

CUI Devices RCJ series phono (RCA) jack, order code RCJ-053, female, 2 conductors, 2 contacts, 3.20mm ID, 9.00mm OD, through hole, solder termination, nickel-plated brass contacts, board lock, unshielded.
| Parameter | Value |
|---|---|
| Series | RCJ |
| Mounting | Through Hole |
| Connector type | Phono (RCA) Jack |
| Operating temperature | -20°C ~ 85°C |
| Body color | Silver, White |
| Body material | Brass |
| Contact material | Brass |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation color | White |
| Contact material - plating | Nickel |
| Gender | Female |
| Package | Bag |
| Parameter | Value |
|---|---|
| Features | Board Lock |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Mono |
| Actual diameter | 0.130\" (3.30mm ID), 0.327\" (8.30mm OD) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 3.20mm ID, 9.00mm OD (RCA) |
The RCJ-053 is the 2-conductor, 2-contact member of CUI Devices' RCJ phono jack line, sharing the 3.20mm ID, 9.00mm OD industry recognized mating diameter with siblings RCJ-051, RCJ-021, and RCJ-025. Within the series the RCJ-053's 2-conductor layout matches the RCJ-051, RCJ-021, and RCJ-025 — the pitch and footprint are shared across the series, so match the conductor count to the signal path.
The RCJ-051 is a same-series peer with identical 2-conductor, 2-contact layout and 3.20mm ID, 9.00mm OD mating diameter. The only difference is the body color (Silver, Black vs Silver, White). The RCJ-053 will drop into a panel specified for the RCJ-051 without rewiring.
