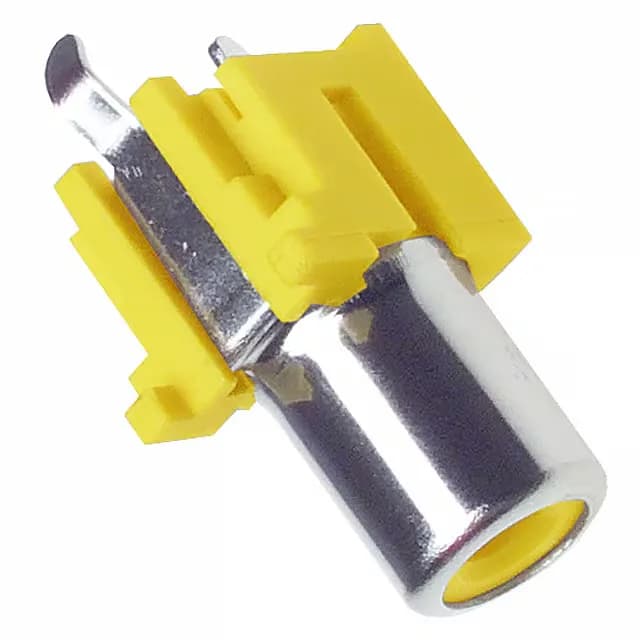

CUI Devices RCJ-054
MPNRCJ-054
Active
CONN RCA JACK MONO 3.2MM PCB
$1.3200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesRCJ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | RCJ |
| Mounting | Through Hole |
| Connector type | Phono (RCA) Jack |
| Operating temperature | -20°C~85°C |
| Body color | Silver, Yellow |
| Body material | Brass |
| Contact material | Brass |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation color | Yellow |
| Contact material - plating | Nickel |
| Gender | Female |
| Package | Bag |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Lock |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Mono |
| Actual diameter | 0.130\" (3.30mm ID), 0.327\" (8.30mm OD) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 3.20mm ID, 9.00mm OD (RCA) |
