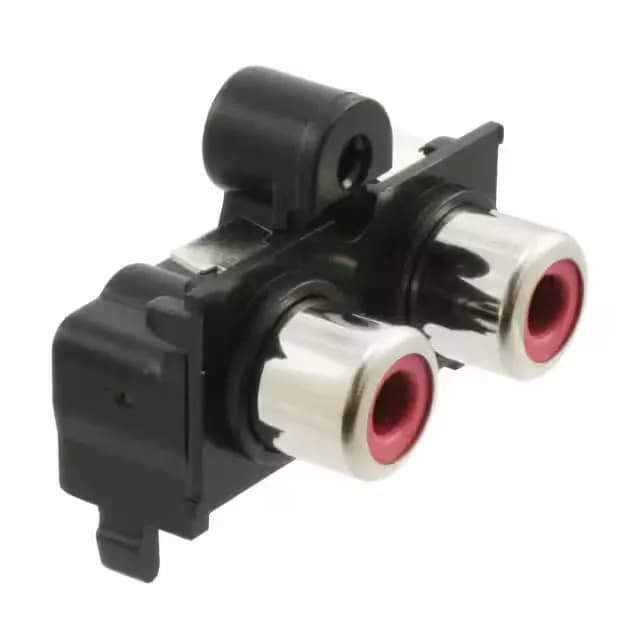

CUI Devices RCJ-2122
MPNRCJ-2122
Active
RCA JACK 2P 1 X 2 HORIZ TH RD/RD
$1.6900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesRCJ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | RCJ |
| Mounting | Through Hole, Right Angle |
| Connector type | Phono (RCA) Jack |
| Voltage - rated | 24VDC |
| Current rating | 5 A |
| Operating temperature | -25°C~70°C |
| Body color | Silver, Black |
| Body material | Bronze |
| Contact material | Phosphor Bronze |
| Housing material | Acrylonitrile Butadiene Styrene (ABS) |
| Insulation color | Red, Red |
| Contact material - plating | Nickel, Tin |
All specifications
| Parameter | Value |
|---|---|
| Gender | Female |
| Package | Box |
| Features | Board Lock |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Mono |
| Actual diameter | 0.138\" (3.50mm ID), 0.327\" (8.30mm OD) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Sets of 2 Conductors, 4 Contacts |
| Industry recognized mating diameter | 3.20mm ID, 9.00mm OD (RCA) |
