RCA jack identity and key ratings

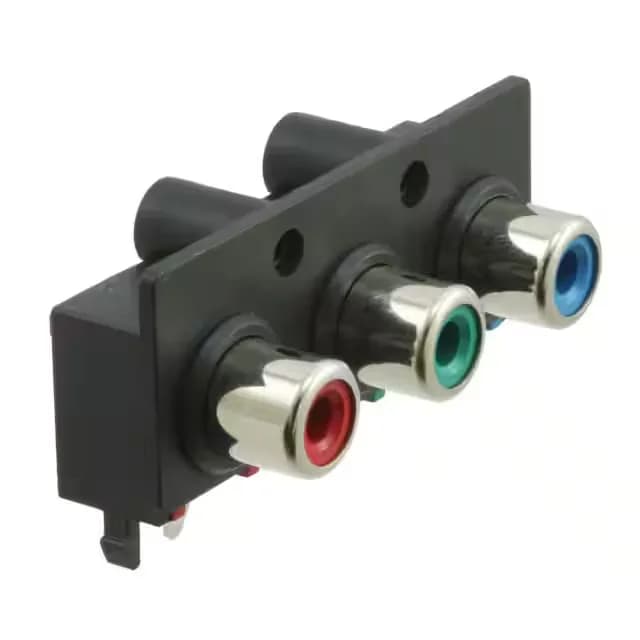

The RCJ-32265 is a female RCA phono jack from CUI Devices' RCJ series, accepting the standard 3.20mm inner diameter / 9.00mm outer diameter RCA plug. It provides 6 contacts arranged as 3 sets of 2 conductors for mono signal lines, with silver-plated brass contacts and a brass body.
Mounting and termination for board layout
Through-hole right-angle mounting with solder termination — the board lock feature secures the jack during wave soldering and resists shear force from cable strain. The housing is polyamide (PA66/Nylon 6/6) with insulation color coding (blue, green, red) per conductor set; the unshielded body suits applications where chassis ground provides the return path.
