CUI Devices RCJ-61443322 — Audio Connectors

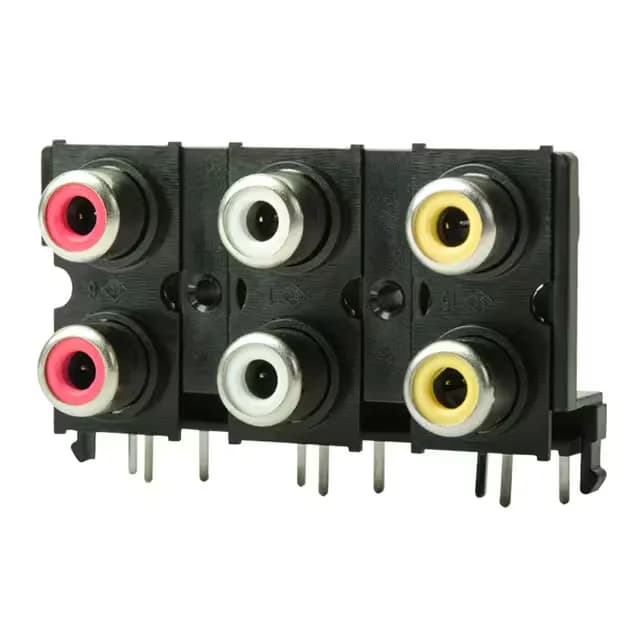

CUI Devices RCJ-61443322 RCA Jack, 6P 2x3 R/A

MPNRCJ-61443322
Active

CUI Devices RCJ series phono (RCA) jack, order code RCJ-61443322, female, 6 sets of 2 conductors, 9 contacts, 3.20mm ID / 9.00mm OD, through-hole right-angle, solder termination, board lock, unshielded.

$4.9900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesRCJ
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

RCJ-61443322 specifications
ParameterValue
SeriesRCJ
MountingThrough Hole, Right Angle
Connector typePhono (RCA) Jack
Body colorSilver, Black
Body materialBrass
Contact materialBrass
Housing materialAcrylonitrile Butadiene Styrene (ABS)
Insulation colorRed, White, Yellow
GenderFemale
PackageBox
FeaturesBoard Lock
ShieldingUnshielded
TerminationSolder
Signal linesMono
Internal switchDoes Not Contain Switch
Number of positions (Contacts)6 Sets of 2 Conductors, 9 Contacts
Industry recognized mating diameter3.20mm ID, 9.00mm OD (RCA)

Product details

RCA jack, 6-circuit, right-angle PCB mount

The RCJ-61443322 is a 6-circuit (9-contact) member of CUI Devices' RCJ phono (RCA) jack line, configured as three stereo pairs in a single through-hole right-angle body. It accepts standard 3.20mm ID / 9.00mm OD RCA plugs and terminates via solder posts. The brass contacts and housing carry the signal; the ABS insulator is colour-coded red, white, and yellow for channel identification.

Same-series siblings: position count is the only variable

Within the RCJ series, the RCJ-61443322's 6-circuit / 9-contact layout is shared with the RCJ-61463522, RCJ-61645223, and RCJ-61223344 — all carry the same 3.20mm ID / 9.00mm OD mating diameter, board lock, through-hole right-angle mounting, and unshielded construction. The pitch and footprint are identical across the group; the selection axis is the colour-coding and body finish, not a functional spec.

Frequently asked questions

What compliance documentation does CUI Devices provide for the RCJ-61443322?

The RCJ-61443322 is RoHS3 compliant per the manufacturer's declaration. No UL or IEC certification is listed in the product record.

Will the RCJ-61443322 drop into a panel specified around the RCJ-61463522 without rewiring?

Yes — the RCJ-61443322 and RCJ-61463522 share the same 6-circuit / 9-contact configuration, 3.20mm ID / 9.00mm OD mating diameter, through-hole right-angle mounting, and board lock. The only difference is the colour-coding of the insulator (red/white/yellow vs another combination). No rewiring or board layout change is required.
