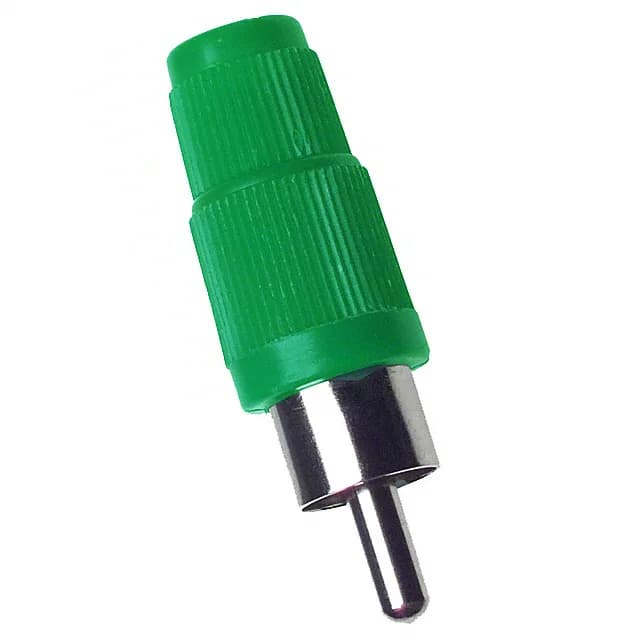

CUI Devices RCP-016
MPNRCP-016
Obsolete
$1.6700Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Phono (RCA) Plug |
| Voltage - rated | 12VDC |
| Current rating | 5 A |
| Operating temperature | -20°C~85°C |
| Body color | Silver, Green |
| Body material | Brass |
| Contact material | Brass |
| Housing material | Acrylonitrile Butadiene Styrene (ABS) |
| Mating length (Depth) | 0.563\" (14.30mm) |
| Contact material - plating | Nickel |
| Gender | Male |
All specifications
| Parameter | Value |
|---|---|
| Package | Box |
| Includes | 2 pcs - 1 Connector, 1 Handle |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Signal lines | Mono |
| Actual diameter | 0.126\" (3.20mm ID), 0.354\" (9.00mm OD) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 3.20mm ID, 9.00mm OD (RCA) |
