CUI Devices RCP-025 — Audio Connectors

RCP-025 CUI Devices RCA Plug, Male, Mono, 2 Conductor

MPNRCP-025
Active

CUI Devices RCP series phono (RCA) plug, order code RCP-025, male, mono, 2 conductors, 3.20mm ID / 9.00mm OD industry mating diameter, nickel-plated brass contacts, unshielded, solder eyelet termination, free hanging in-line mount.

$1.6900Ref. price · indicative, final on quote
CUI Devices RCP-025 datasheet (PDF)
RoHSROHS3 Compliant
SeriesRCP
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

RCP-025 key specifications
ParameterValue
SeriesRCP
MountingFree Hanging (In-Line)
Connector typePhono (RCA) Plug
Cable opening0.197\" (5.00mm)
Operating temperature-20°C ~ 85°C
Body colorSilver, Blue
Body materialBrass
Contact materialBrass
Housing materialAcrylonitrile Butadiene Styrene (ABS)
Mating length (Depth)0.571\" (14.50mm)
Contact material - platingNickel
GenderMale

All specifications

RCP-025 additional specifications
ParameterValue
PackageBag
FeaturesStrain Relief
Includes2 pcs - 1 Connector, 1 Handle
ShieldingUnshielded
TerminationSolder Eyelet(s)
Signal linesMono
Actual diameter0.126\" (3.20mm ID), 0.354\" (9.00mm OD)
Internal switchDoes Not Contain Switch
Number of positions (Contacts)2 Conductors, 2 Contacts
Industry recognized mating diameter3.20mm ID, 9.00mm OD (RCA)

Product details

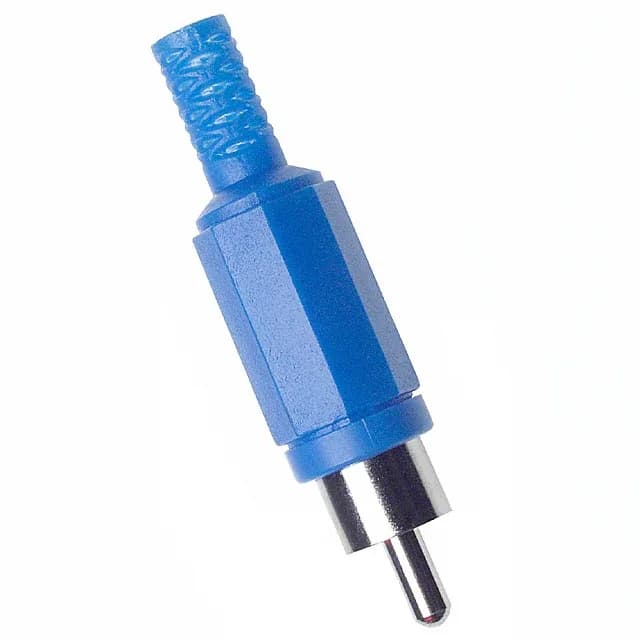

RCA plug with strain relief, silver-blue body

The RCP-025 is a male mono RCA plug from CUI Devices' RCP series, carrying 2 conductors and 2 contacts for analog audio signal duty. It mates with the industry-standard 3.20mm ID / 9.00mm OD RCA jack and terminates via solder eyelets — the brass body and nickel-plated brass contacts suit general-purpose line-level interconnects.

Selection across the RCP series — color codes

The RCP-025 with its silver-and-blue body is the left-channel (white) counterpart to the RCP-022 (silver-red, right channel) and the RCP-024 (silver-yellow, center/subwoofer). All share the same 3.20mm / 9.00mm mating diameter, cable opening of 0.197" (5.00mm), strain relief, and solder eyelet termination — the color band is the only functional difference, so match it to the channel code on the mating jack.

Frequently asked questions

Will RCP-025 drop into a panel that was specified around RCP-023 without rewiring?

Yes — the mechanical footprint, mating diameter, cable opening, and termination style are identical across the RCP series. The only difference is the body color band (silver-blue vs silver-white); the connector fits the same jack and same cable preparation.

What compliance documentation does CUI Devices provide for RCP-025?

No UL, CSA, or IEC listing is cited for this connector.
