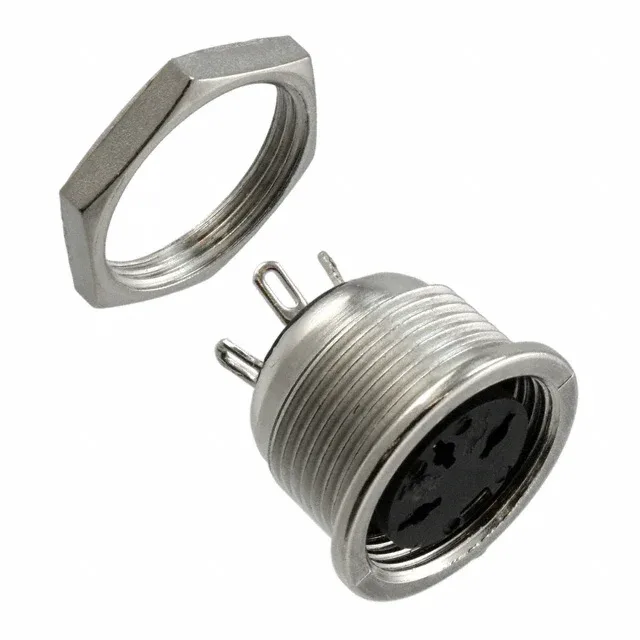

CUI Devices SD-30LS
MPNSD-30LS
Active
CONN RCPT FMALE DIN 3P SOLDER
$3.89Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSD-LS
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SD-LS |
| Mounting | Panel Mount |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 100VAC |
| Current rating | 2A |
| Mounting feature | Bulkhead - Rear Side Nut |
| Operating temperature | -40°C ~ 85°C |
| Color | Silver |
| Shell material | Zinc |
| Insert material | Polyamide (PA), Nylon |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Metal |
| Material flammability rating | UL94 HB |
| Package | Box |
| Shielding | Shielded |
| Orientation | Keyed |
| Termination | Solder Eyelet(s) |
| Shell finish | Nickel |
| Positions | 3 |
| Shell size - insert | DIN (180 Degree) |
| Contact finish - mating | Tin |
