CUI Devices SJ-2504N — Audio Connectors

CUI Devices SJ-2504N Phone Jack, 2.5mm, 3 Conductor, R/A

MPNSJ-2504N
Active

CUI Devices SJ series phone jack, order code SJ-2504N, female, 3 conductors (TRS), 4 contacts, 2.50mm industry-recognized mating diameter, 1 A, 12 VDC, through-hole right-angle, solder termination, tin-plated brass contacts, unshielded, black PBT housing.

$0.8600Ref. price · indicative, final on quote
CUI Devices SJ-2504N datasheet (PDF)
RoHSROHS3 Compliant
SeriesSJ
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

SJ-2504N key specifications
ParameterValue
SeriesSJ
MountingThrough Hole, Right Angle
Connector typePhone Jack
Voltage - rated12VDC
Current rating1 A
Operating temperature-20°C~60°C
Body colorBlack
Contact materialBrass
Housing materialPolybutylene Terephthalate (PBT)
Contact material - platingTin
GenderFemale
PackageBag

All specifications

SJ-2504N additional specifications
ParameterValue
ShieldingUnshielded
TerminationSolder
Signal linesStereo (3 Conductor, TRS)
Actual diameter0.102\" (2.60mm)

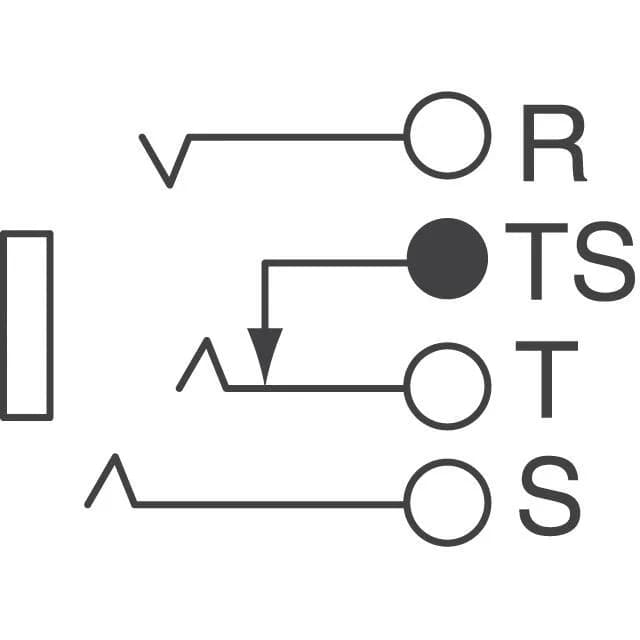

Internal switchSingle Switch
Number of positions (Contacts)3 Conductors, 4 Contacts
Industry recognized mating diameter2.50mm (0.094\", 3/32\", Sub Mini, Miniature) - Headphone

Product details

2.5 mm stereo jack, 1 A at 12 VDC

The SJ-2504N is the 3-conductor, 4-contact member of CUI Devices' SJ phone jack series, mating with a standard 2.50 mm (3/32") stereo plug. Rated 1 A at 12 VDC, the tin-plated brass contacts and single internal switch suit signal-level audio switching in panel-mount or board-edge applications.

Through-hole right-angle vs SMT siblings

Within the SJ-25 base series, the SJ-2504N uses a through-hole right-angle termination, while the SJ-2524-SMT-TR and SJ-2523-SMT-TR use surface-mount right-angle — the board footprint differs, but the 2.50 mm mating diameter, 1 A rating, and unshielded construction are shared across the three.
