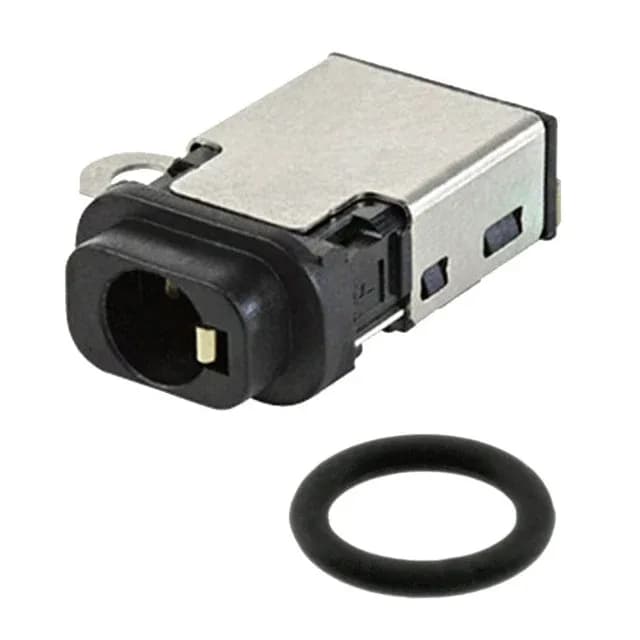

CUI Devices SJ series phone jack, order code SJ-3542AS-SMT-TR-67, female, 5 conductors (TRRRS), 3.50 mm mating diameter, 1 A, 12 VDC, gold-plated contacts, shielded, surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | SJ |
| Mounting | Surface Mount, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -25°C~85°C |
| Body color | Black |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA10T), Nylon 10T |
| Mating length (Depth) | 0.551\" (14.00mm) |
| Contact material - plating | Gold |
| Gender | Female |
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide, Mounting Tab, IP67 |
| Shielding | Shielded |
| Termination | Solder |
| Signal lines | 5 Conductor (TRRRS) |
| Actual diameter | 0.142\" (3.60mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 5 Conductors, 5 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
The SJ-3542AS-SMT-TR-67 is the 5-conductor TRRRS member of CUI Devices' SJ series phone jack line, accepting a 3.50 mm industry-recognized mini plug. Rated 1 A at 12 VDC with gold-plated mating contacts, the shielded right-angle SMT jack carries an IP67 rating for dust and temporary immersion protection.
The part is RoHS3 compliant and sourced per RFQ against BOM quantity.
RoHS3 compliance is confirmed. No UL or IEC certification is listed in the available specification data.
