CUI Devices SJ-3551B-MSMT-TR-67 — Audio Connectors

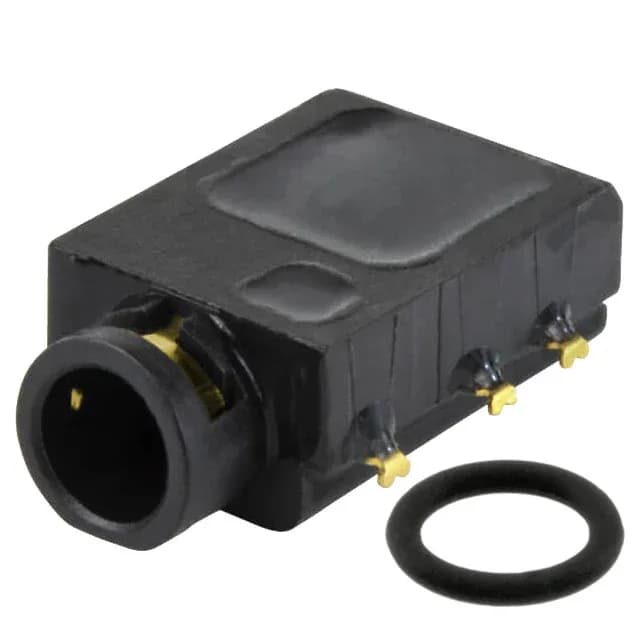

CUI Devices SJ-3551B-MSMT-TR-67 Audio Jack, 3.5mm, IP67

MPNSJ-3551B-MSMT-TR-67
Active

CUI Devices SJ series phone jack, order code SJ-3551B-MSMT-TR-67, female, 3.50 mm (0.141", 1/8", Mini Plug) mating diameter, 5 conductors (TRRS), 6 contacts, 1 A, 12 VDC, gold-plated contacts, board cutout surface-mount right-angle, solder termination.

$5.3400Ref. price · indicative, final on quote
CUI Devices SJ-3551B-MSMT-TR-67 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSJ
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

SJ-3551B-MSMT-TR-67 key specifications
ParameterValue
SeriesSJ
MountingBoard Cutout, Surface Mount, Right Angle
Connector typePhone Jack
Voltage - rated12VDC
Current rating1 A
Operating temperature-30°C ~ 85°C
Body colorBlack
Contact materialCopper Alloy, Titanium (Ti)
Housing materialPolyamide (PA9T), Nylon 9T
Mating length (Depth)0.551\" (14.00mm)
Contact material - platingGold
GenderFemale

All specifications

SJ-3551B-MSMT-TR-67 additional specifications
ParameterValue
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesIP67
Includes2 pcs - 1 Connector, 1 O-Ring
ShieldingUnshielded
TerminationSolder
Signal linesStereo (4 Conductor, TRRS)
Actual diameter0.142\" (3.60mm)
Internal switchSingle Switch
Number of positions (Contacts)5 Conductors, 6 Contacts
Industry recognized mating diameter3.50mm (0.141\", 1/8\", Mini Plug) - Headphone

Product details

3.5 mm sealed jack for panel-mount audio

The SJ-3551B-MSMT-TR-67 is a female phone jack from CUI Devices' SJ series, accepting a standard 3.50 mm (1/8") mini plug for stereo (TRRS) audio signals. Rated 1 A at 12 VDC with gold-plated copper alloy and titanium contacts, it mounts board cutout, surface-mount right-angle with solder termination.

IP67 seal with included O-ring

IP67 rated — the connector ships with an O-ring that seals the panel cutout when mated, keeping washdown and outdoor moisture out of the enclosure. Operating temperature range is -30°C to 85°C, covering industrial and outdoor audio equipment.

Positioning within the SJ series

Within the SJ series, the SJ-3551B-MSMT-TR-67 carries a single internal switch and 6 contacts, while the SJ-3553A-SMT-TR-67 has no internal switch and 5 contacts — both share the same 3.50 mm mating diameter, 1 A rating, and IP67 seal. The SJ-3542AS-SMT-TR-67 adds a shielded shell for EMI-sensitive applications, also with 5 contacts and no switch.

Frequently asked questions

Will the SJ-3551B-MSMT-TR-67 drop into a panel specified for the SJ-3552B-MSMT-TR-67?

The SJ-3551B-MSMT-TR-67 and SJ-3552B-MSMT-TR-67 share the same 3.50 mm mating diameter, 0.551" (14.00 mm) mating depth, IP67 rating, and board cutout SMT right-angle mounting — the difference is signal lines: the SJ-3551B-MSMT-TR-67 is a 4-conductor (TRRS) jack, while the SJ-3552B-MSMT-TR-67 is a 5-conductor (TRRRS) jack.
