CUI Devices SJ-3552B-MSMT-TR-67 — Audio Connectors

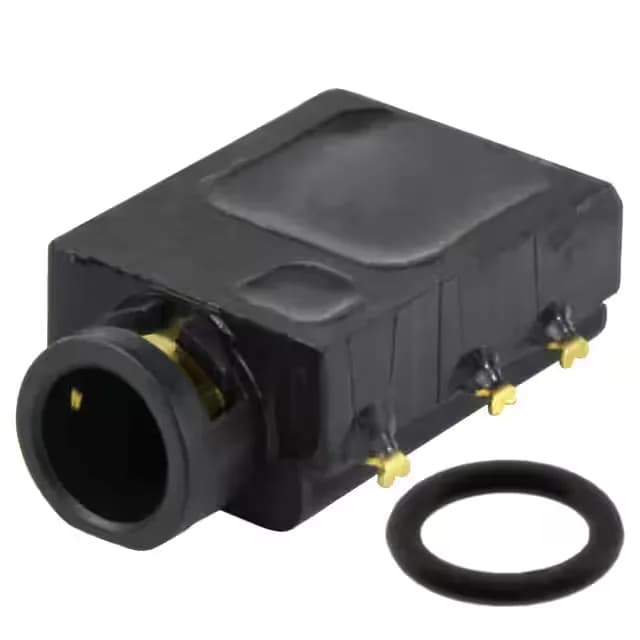

CUI Devices SJ-3552B-MSMT-TR-67 Phone Jack, 3.5mm, IP67

MPNSJ-3552B-MSMT-TR-67
Active

CUI Devices SJ series phone jack, order code SJ-3552B-MSMT-TR-67, female, 5 conductor (TRRRS), 3.50 mm industry mating diameter, 1 A, 12 VDC, gold-plated contacts, board cutout surface-mount right-angle, solder termination.

$4.9700Ref. price · indicative, final on quote
CUI Devices SJ-3552B-MSMT-TR-67 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSJ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

SJ-3552B-MSMT-TR-67 key specifications
ParameterValue
SeriesSJ
MountingBoard Cutout, Surface Mount, Right Angle
Connector typePhone Jack
Voltage - rated12VDC
Current rating1 A
Operating temperature-30°C~85°C
Body colorBlack
Contact materialCopper Alloy, Titanium (Ti)
Housing materialPolyamide (PA9T), Nylon 9T
Mating length (Depth)0.551\" (14.00mm)
Contact material - platingGold
GenderFemale

All specifications

SJ-3552B-MSMT-TR-67 additional specifications
ParameterValue
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesIP67
Includes2 pcs - 1 Connector, 1 O-Ring
ShieldingUnshielded
TerminationSolder
Signal lines5 Conductor (TRRRS)
Actual diameter0.142\" (3.60mm)
Internal switchSingle Switch
Number of positions (Contacts)5 Conductors, 6 Contacts
Industry recognized mating diameter3.50mm (0.141\", 1/8\", Mini Plug) - Headphone

Product details

Sealed audio jack for exposed ports

The SJ-3552B-MSMT-TR-67 is a 5-conductor (TRRRS) phone jack in CUI Devices' SJ series, accepting a standard 3.50 mm mini plug. Rated 1 A at 12 VDC with gold-plated contacts, it mounts board-cutout surface-mount right-angle and terminates by solder.

IP67 seal and housing construction

IP67 rated when mated — the supplied O-ring seals the panel cutout, keeping moisture and dust out of the enclosure. Housing is polyamide (PA9T) with a copper alloy and titanium contact base; the assembly is unshielded and operates from -30°C to 85°C.

Frequently asked questions

What is the mating diameter and contact configuration of the SJ-3552B-MSMT-TR-67?

The industry-recognized mating diameter is 3.50 mm (1/8", mini plug). The jack provides 5 conductors (TRRRS) with 6 contacts and a single internal switch.
