CUI Devices SJ-435107 — Audio Connectors

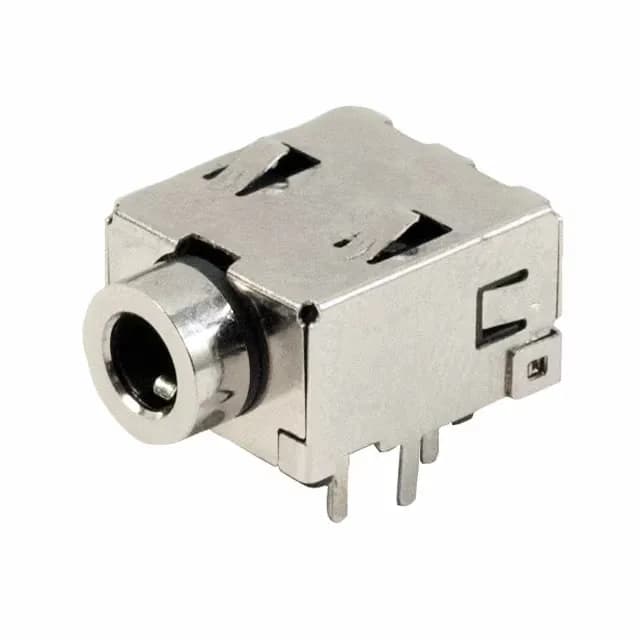

CUI Devices SJ-435107 Phone Jack, 3.5mm, 4 Conductor, R/A

MPNSJ-435107
Active

CUI Devices SJ phone jack, order code SJ-435107, female, 3.50mm (1/8") mini plug, 4 conductors (TRRS), through-hole right-angle, solder termination, shielded, tin-plated contacts, rated 1 A at 12 V.

$1.7700Ref. price · indicative, final on quote
CUI Devices SJ-435107 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSJ
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

SJ-435107 key specifications
ParameterValue
SeriesSJ
MountingThrough Hole, Right Angle
Connector typePhone Jack
Voltage - rated12V
Current rating1 A
Operating temperature-35°C~85°C
Body colorSilver
Body materialBrass
Contact materialCopper Alloy
Housing materialPolyamide (PA66), Nylon 6/6
Mating length (Depth)0.551\" (14.00mm)
Contact material - platingTin

All specifications

SJ-435107 additional specifications
ParameterValue
GenderFemale
PackageTray
FeaturesGrounding Tab
ShieldingShielded
TerminationSolder
Signal linesStereo (4 Conductor, TRRS)
Actual diameter0.142\" (3.60mm)
Internal switchSingle Switch
Number of positions (Contacts)4 Conductors, 4 Contacts
Industry recognized mating diameter3.50mm (0.141\", 1/8\", Mini Plug) - Headphone

Product details

Right-angle 3.5 mm phone jack for panel-mount audio

The SJ-435107 is a female phone jack accepting a 3.50 mm (1/8") mini plug, with 4 conductors (TRRS) for stereo audio plus a microphone or control channel. It mounts through-hole right-angle, terminates by solder, and carries a tin-plated copper alloy contact rated 1 A at 12 V.

Shielded housing with grounding tab

The brass body is shielded and includes a grounding tab for chassis ground connection. The housing is polyamide (PA66) with a silver finish. Operating temperature range is -35°C to 85°C.

Frequently asked questions

What compliance documentation does CUI Devices provide for SJ-435107?

The SJ-435107 is ROHS3 compliant.

What is the mating diameter and conductor count for SJ-435107?

It accepts a 3.50 mm (1/8") mini plug and provides 4 conductors (TRRS).
