CUI Devices SJ-43515RS-SMT-TR — Audio Connectors

CUI Devices SJ-43515RS-SMT-TR Audio Jack, 3.5mm, SMD

MPNSJ-43515RS-SMT-TR
Active

CUI Devices SJ series phone jack, order code SJ-43515RS-SMT-TR, female, 4 conductors 5 contacts, 3.50mm industry-recognized plug diameter, 1 A, 12 VDC, silver-plated contacts, surface-mount right-angle, solder termination.

$1.2200Ref. price · indicative, final on quote
CUI Devices SJ-43515RS-SMT-TR datasheet (PDF)
RoHSROHS3 Compliant
SeriesSJ
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

SJ-43515RS-SMT-TR key specifications
ParameterValue
SeriesSJ
MountingSurface Mount, Right Angle
Connector typePhone Jack
Voltage - rated12VDC
Current rating1 A
Operating temperature-20°C~85°C
Body colorBlack
Contact materialBrass; Copper Alloy
Housing materialPolyamide (PA6T), Nylon 6T
Mating length (Depth)0.551\" (14.00mm)
Contact material - platingSilver
GenderFemale

All specifications

SJ-43515RS-SMT-TR additional specifications
ParameterValue
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Guide
ShieldingUnshielded
TerminationSolder
Signal linesStereo (4 Conductor, TRRS)
Actual diameter0.142\" (3.60mm)

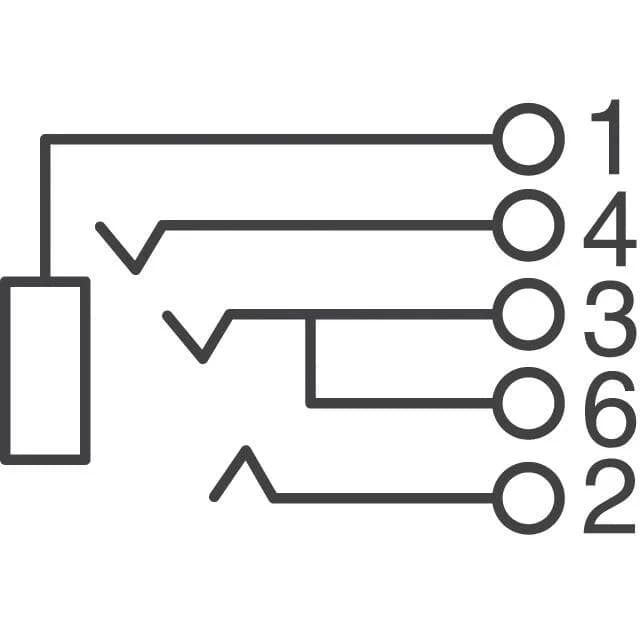

Internal switchSingle Switch
Number of positions (Contacts)4 Conductors, 5 Contacts
Industry recognized mating diameter3.50mm (0.141\", 1/8\", Mini Plug) - Headphone

Product details

SMT audio jack for 3.50 mm plugs

The SJ-43515RS-SMT-TR is a 4-conductor TRRS phone jack from CUI Devices' SJ series, accepting standard 3.50 mm mini plugs. It mounts surface-mount right-angle and terminates with solder pads. Silver-plated brass and copper alloy contacts carry 1 A at 12 VDC. The housing is polyamide 6T rated for operation from -20°C to 85°C.

Board guide and single-switch internal

A board guide aids alignment during reflow. The single internal switch closes on plug insertion for detect or mute functions. The jack is unshielded.
