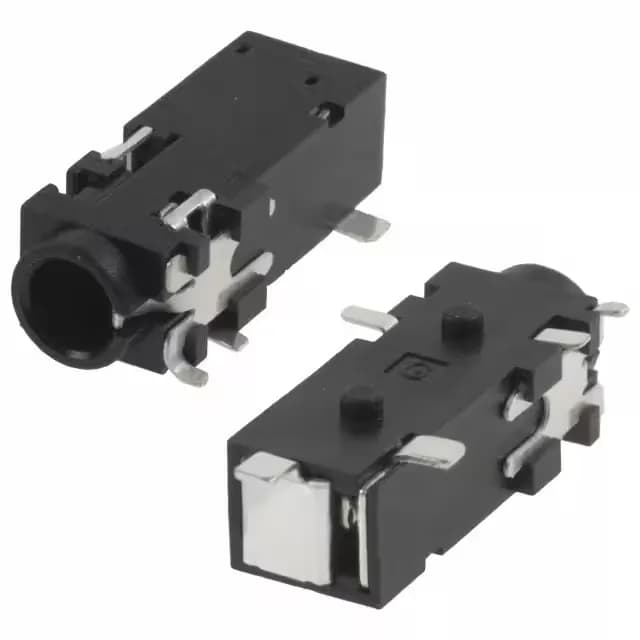

CUI Devices SJ series phone jack, order code SJ-43515TS-SMT-TR, female, 4 conductors (TRRS), 5 contacts, 3.50 mm industry mating diameter, 1 A, 12 VDC, silver-plated contacts, surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | SJ |
| Mounting | Surface Mount, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -20°C~85°C |
| Body color | Black |
| Contact material | Brass; Copper Alloy |
| Housing material | Polyamide (PA6T), Nylon 6T |
| Mating length (Depth) | 0.551\" (14.00mm) |
| Contact material - plating | Silver |
| Gender | Female |
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Stereo (4 Conductor, TRRS) |
| Actual diameter | 0.142\" (3.60mm) |
| Internal switch | Single Switch |
| Number of positions (Contacts) | 4 Conductors, 5 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
The SJ-43515TS-SMT-TR is the 4-conductor (TRRS) member of CUI Devices' SJ series 3.50 mm phone jack line, accepting standard 1/8" mini plugs. Rated 1 A at 12 VDC with silver-plated contacts, the jack includes a single internal switch and a board guide for automated placement.
Both share the same 4-conductor, 5-contact layout, 3.50 mm mating diameter, and 1 A rating. The SJ-43515TS-SMT-TR ships in Tape & Reel or Cut Tape; the SJ-43515RS-SMT-TR adds Digi-Reel packaging. The footprint and switch configuration are identical.
