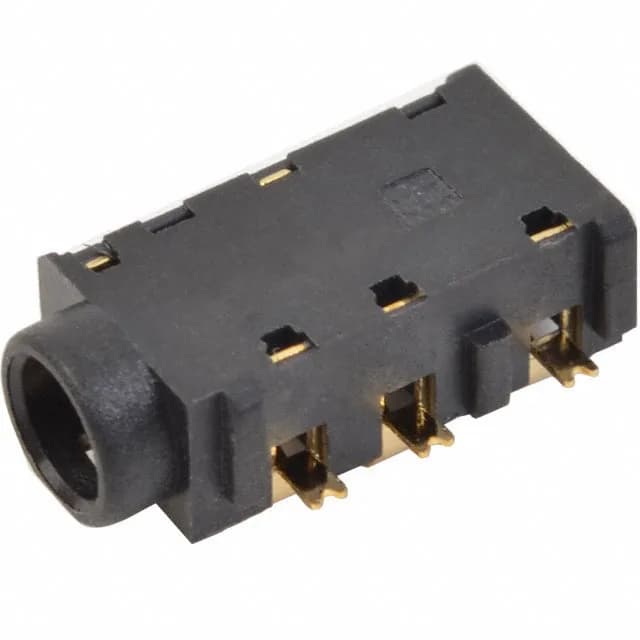

CUI Devices SJ-43615RS-SMT-TR
MPNSJ-43615RS-SMT-TR
Active
CONN JACK 4COND 3.5MM SMD R/A
$0.7963Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSJ
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SJ |
| Mounting | Board Cutout, Surface Mount, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -20°C~85°C |
| Body color | Black |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA6T), Nylon 6T |
| Mating length (Depth) | 0.551\" (14.00mm) |
| Contact material - plating | Gold |
| Gender | Female |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Stereo (4 Conductor, TRRS) |
| Actual diameter | 0.142\" (3.60mm) |
| Internal switch | Single Switch |
| Number of positions (Contacts) | 4 Conductors, 5 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
