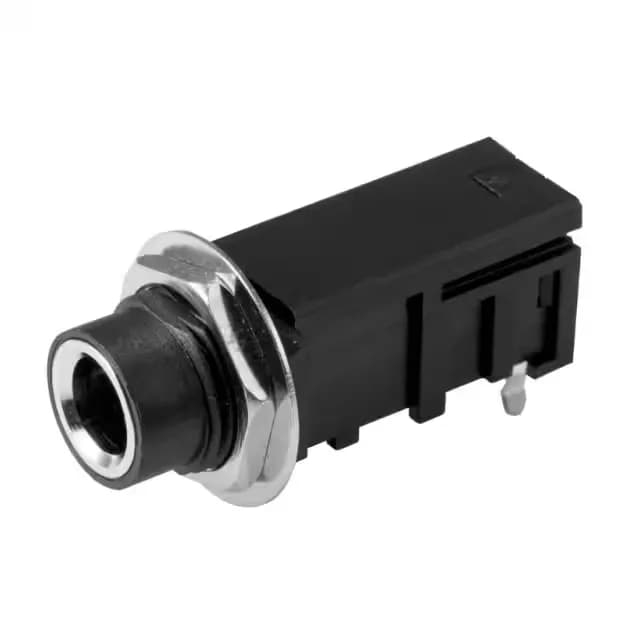

CUI Devices SJ phone jack, order code SJ-63053A, female, 3 conductors (TRS), 6.35 mm industry-recognized mating diameter, 1 A, 12 VDC, silver-plated phosphor bronze contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | SJ |
| Mounting | Through Hole, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -25°C~70°C |
| Body color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT) |
| Mating length (Depth) | 1.220\" (31.00mm) |
| Contact material - plating | Silver |
| Gender | Female |
| Parameter | Value |
|---|---|
| Package | Bag |
| Features | Cover, Mounting Hardware, Thread Lock |
| Shielding | Unshielded |
| Termination | Solder |
| Connector size | M12 |
| Signal lines | Stereo (3 Conductor, TRS) |
| Actual diameter | 0.253\" (6.43mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 3 Conductors, 3 Contacts |
| Industry recognized mating diameter | 6.35mm (0.250\", 1/4\") - Headphone |
The SJ-63053A is a 3-conductor (TRS) phone jack from CUI Devices' SJ series, accepting a standard 6.35 mm (1/4") headphone plug. Rated 1 A at 12 VDC, the silver-plated phosphor bronze contacts suit repeated insertion cycles in audio patch bays and instrument inputs.
The SJ-63053A is orderable under the listed part number.
