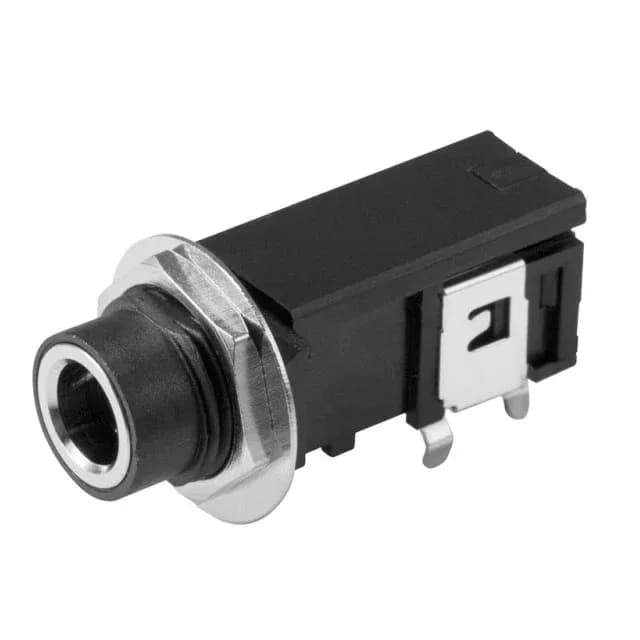

CUI Devices SJ series phone jack, order code SJ-63062B, female, 2 conductors / 3 contacts, 6.35 mm industry mating diameter, 1 A, 12 VDC, through-hole right-angle, solder termination, silver-plated phosphor bronze contacts.
| Parameter | Value |
|---|---|
| Series | SJ |
| Mounting | Through Hole, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -25°C~70°C |
| Body color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT) |
| Mating length (Depth) | 1.220\" (31.00mm) |
| Contact material - plating | Silver |
| Gender | Female |
| Parameter | Value |
|---|---|
| Package | Bag |
| Features | Cover, Mounting Hardware, Thread Lock |
| Shielding | Unshielded |
| Termination | Solder |
| Connector size | M12 |
| Signal lines | Mono |
| Actual diameter | 0.252\" (6.40mm) |
| Internal switch | Single Switch |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 6.35mm (0.250\", 1/4\") - Headphone |
The SJ-63062B is the 2-conductor, 3-contact member of CUI Devices' SJ series 6.35 mm phone jack line, accepting the industry-standard 0.250" (1/4") headphone plug. The M12 thread lock and included mounting hardware secure the jack against vibration in panel-mount applications.
The industry-recognized mating diameter is 6.35 mm (0.250", 1/4") — a standard headphone plug. The jack accepts mono (2-conductor) plugs and switches a single internal contact on insertion.
