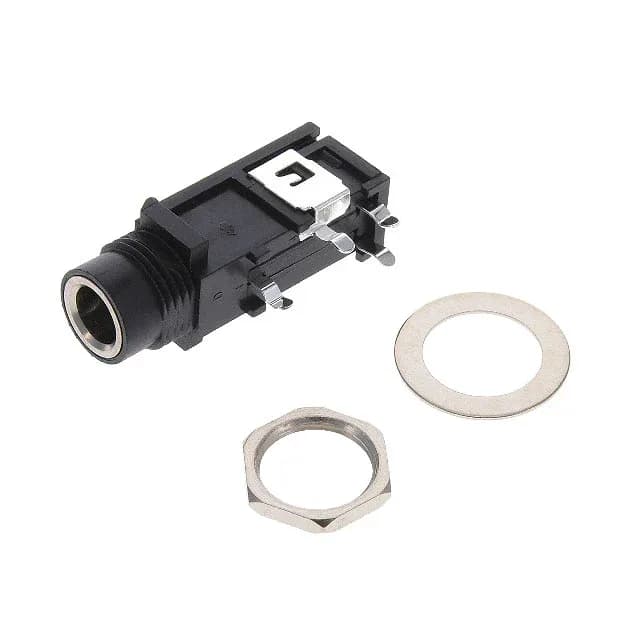

CUI Devices SJ-63063B
MPNSJ-63063B
Active
AUDIO JACK, 6.35 MM, HORIZONTAL,
$2.4200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSJ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SJ |
| Mounting | Through Hole, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -25°C~70°C |
| Body color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT) |
| Mating length (Depth) | 1.220\" (31.00mm) |
| Contact material - plating | Silver |
| Gender | Female |
All specifications
| Parameter | Value |
|---|---|
| Package | Bag |
| Features | Cover, Mounting Hardware, Thread Lock |
| Shielding | Unshielded |
| Termination | Solder |
| Connector size | M12 |
| Signal lines | Stereo (3 Conductor, TRS) |
| Actual diameter | 0.252\" (6.40mm) |
| Internal switch | Single Switch |
| Number of positions (Contacts) | 3 Conductors, 4 Contacts |
| Industry recognized mating diameter | 6.35mm (0.250\", 1/4\") - Headphone |
