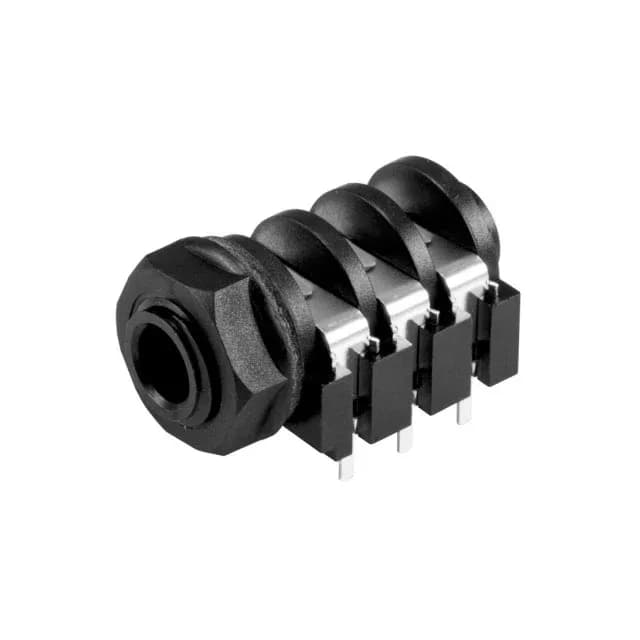

CUI Devices SJ phone jack, order code SJ-63073E, female, 6.35 mm (1/4") stereo TRS, 3 conductors, 6 contacts, 1 A, 12 VDC, silver-plated contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | SJ |
| Mounting | Through Hole, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -25°C~70°C |
| Body color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Mating length (Depth) | 1.220\" (31.00mm) |
| Contact material - plating | Silver |
| Gender | Female |
| Parameter | Value |
|---|---|
| Package | Bag |
| Features | Mounting Hardware, Thread Lock |
| Shielding | Unshielded |
| Termination | Solder |
| Connector size | 7/16\"-20 |
| Signal lines | Stereo (3 Conductor, TRS) |
| Internal switch | Three Switches |
| Number of positions (Contacts) | 3 Conductors, 6 Contacts |
| Industry recognized mating diameter | 6.35mm (0.250\", 1/4\") - Headphone |
The SJ-63073E is a 6.35 mm (1/4") stereo phone jack from CUI Devices' SJ series, configured as a female 3-conductor TRS with 6 contacts. Rated 1 A at 12 VDC with silver-plated phosphor bronze contacts, it mounts through-hole right-angle and terminates by solder.
No. The SJ-63073E is a stereo (3-conductor, TRS) jack with three internal switches, while the SJ-63072J is a mono (2-conductor) jack with two switches. The signal wiring differs.
