CUI Devices SJ1-2534-SMT-TR — Audio Connectors

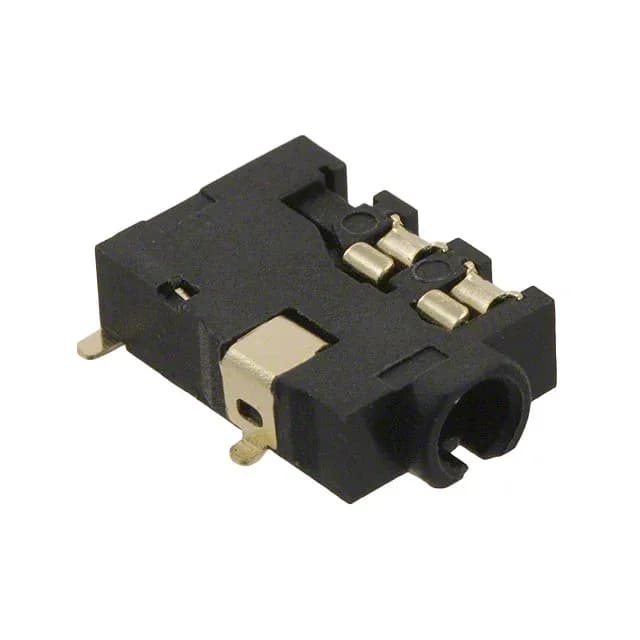

CUI Devices SJ1-2534-SMT-TR 2.5mm Stereo Jack, SMT R/A

MPNSJ1-2534-SMT-TR
Active

CUI Devices SJ1 series phone jack, order code SJ1-2534-SMT-TR, female, 3 conductors (TRS), 4 contacts, 2.50 mm industry-recognized mating diameter, 1 A, 12 VDC, gold-plated contacts, surface-mount right-angle, solder termination.

$1.0500Ref. price · indicative, final on quote
CUI Devices SJ1-2534-SMT-TR datasheet (PDF)
RoHSROHS3 Compliant
SeriesSJ1
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

SJ1-2534-SMT-TR key specifications
ParameterValue
SeriesSJ1
MountingSurface Mount, Right Angle
Connector typePhone Jack
Voltage - rated12VDC
Current rating1 A
Operating temperature-25°C ~ 85°C
Body colorBlack
Contact materialCopper Alloy
Housing materialPolyamide (PA6T), Nylon 6T
Mating length (Depth)0.433\" (11.00mm)
Contact material - platingGold
GenderFemale

All specifications

SJ1-2534-SMT-TR additional specifications
ParameterValue
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide
ShieldingUnshielded
TerminationSolder
Signal linesStereo (3 Conductor, TRS)
Actual diameter0.102\" (2.60mm)
Internal switchSingle Switch
Number of positions (Contacts)3 Conductors, 4 Contacts
Industry recognized mating diameter2.50mm (0.094\", 3/32\", Sub Mini, Miniature) - Headphone

Product details

2.5 mm stereo jack, SMT right-angle

The SJ1-2534-SMT-TR is the single-switch member of CUI Devices' SJ1 2.5 mm phone jack family, accepting a standard 2.50 mm (3/32") stereo plug. Rated 1 A at 12 VDC with gold-plated contacts on a copper alloy base, the jack is housed in a PA6T body rated -25°C to 85°C.

Switch configuration across the SJ1-25 series

Within the SJ1-25 sub-series the SJ1-2534-SMT-TR (single switch, 4 contacts) sits between the SJ1-2533-SMT-TR (no switch, 3 contacts) and the SJ1-2535-SMT-TR (two switches, 5 contacts) — all share the same 2.50 mm mating diameter, 1 A rating, and SMT right-angle footprint.

Frequently asked questions

What compliance documentation does CUI Devices provide for SJ1-2534-SMT-TR?

The part is listed as ROHS3 Compliant. No UL or IEC certification is cited in the available records.

Will SJ1-2534-SMT-TR drop into a board that was specified around SJ1-2533-SMT-TR without rewiring?

The footprint and mating diameter are identical across the SJ1-25 sub-series, but the SJ1-2534-SMT-TR adds a single internal switch and a fourth contact (tip, ring, sleeve, plus switch). The switch contact requires an additional PCB trace compared to the no-switch SJ1-2533-SMT-TR.
