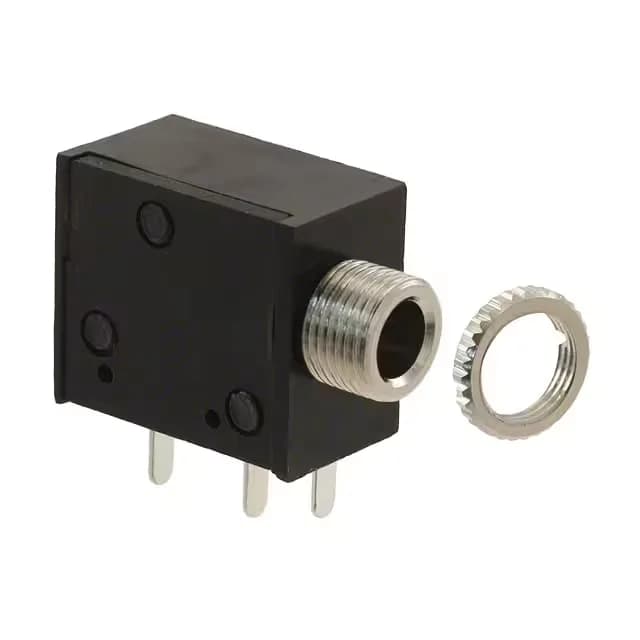

CUI Devices SJ1 series phone jack, order code SJ1-3533, female, 3 conductors (stereo TRS), 3.50mm industry mating diameter, 1 A, 12 VDC, tin-plated brass contacts, panel mount through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | SJ1 |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -25°C~85°C |
| Body color | Silver, Black |
| Body material | Brass |
| Contact material | Brass |
| Housing material | Polybutylene Terephthalate (PBT) |
| Mating length (Depth) | 0.551\" (14.00mm) |
| Contact material - plating | Tin |
| Parameter | Value |
|---|---|
| Gender | Female |
| Package | Tray |
| Features | Mounting Hardware, Thread Lock |
| Includes | 2 pcs - 1 Connector, 1 Nut |
| Shielding | Unshielded |
| Termination | Solder |
| Connector size | M6 |
| Signal lines | Stereo (3 Conductor, TRS) |
| Actual diameter | 0.142\" (3.60mm) |
| Panel hole size | 0.236\" (5.99mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 3 Conductors, 3 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
The SJ1-3533 is a 3-conductor (stereo TRS) phone jack from CUI Devices' SJ1 series, accepting a 3.50mm industry-standard mini plug. Rated 1 A at 12 VDC, with tin-plated brass contacts and a brass body, it mounts through-hole right-angle with a panel hole size of 0.236" (5.99mm) and M6 thread lock hardware.
