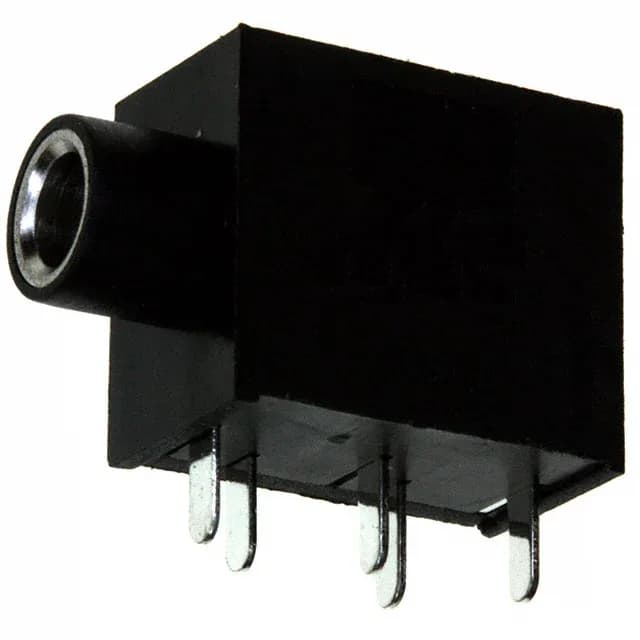

CUI Devices SJ1-3535NG
MPNSJ1-3535NG
Active
CONN JACK STEREO 3.5MM R/A
$1.4200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSJ1
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SJ1 |
| Mounting | Through Hole, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 16VDC |
| Current rating | 1 A |
| Operating temperature | -25°C~85°C |
| Body color | Black |
| Contact material | Brass |
| Housing material | Polybutylene Terephthalate (PBT) |
| Mating length (Depth) | 0.551\" (14.00mm) |
| Contact material - plating | Tin |
| Gender | Female |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Stereo (3 Conductor, TRS) |
| Actual diameter | 0.142\" (3.60mm) |
| Internal switch | Two Switches |
| Number of positions (Contacts) | 3 Conductors, 5 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
