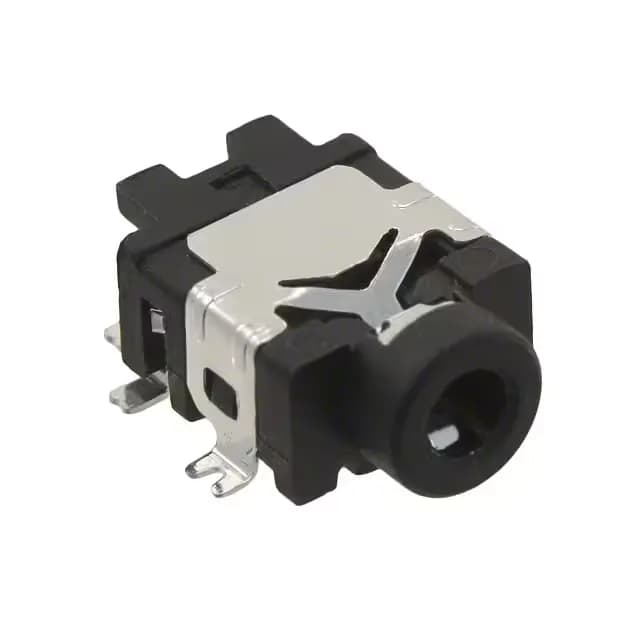

CUI Devices SJ1-42536-SMT-TR
MPNSJ1-42536-SMT-TR
Active
CONN JACK 4COND 2.5MM SMD R/A
$0.7046Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSJ1
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SJ1 |
| Mounting | Surface Mount, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 16VDC |
| Current rating | 300 mA |
| Operating temperature | -25°C~85°C |
| Body color | Black |
| Contact material | Brass; Copper Alloy |
| Housing material | Polyamide (PA6T), Nylon 6T |
| Mating length (Depth) | 0.433\" (11.00mm) |
| Contact material - plating | Silver |
| Gender | Female |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Stereo (4 Conductor, TRRS) |
| Actual diameter | 0.102\" (2.60mm) |
| Internal switch | Two Switches |
| Number of positions (Contacts) | 4 Conductors, 6 Contacts |
| Industry recognized mating diameter | 2.50mm (0.094\", 3/32\", Sub Mini, Miniature) - Headphone |
