CUI Devices SJ2-35564A-SMT-TR — Audio Connectors

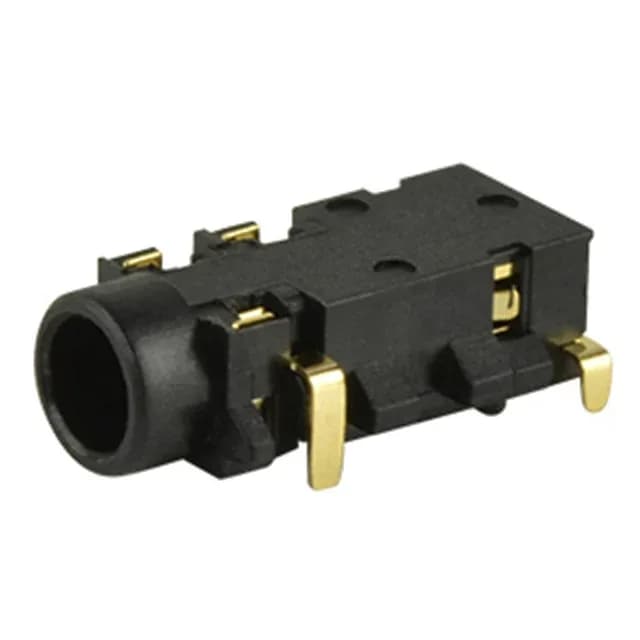

CUI Devices SJ2-35564A-SMT-TR Phone Jack, 3.50mm

MPNSJ2-35564A-SMT-TR
Active

CUI Devices SJ2 phone jack, order code SJ2-35564A-SMT-TR, female, 5 conductor (TRRRS), 3.50 mm industry recognized mating diameter, 1 A, 12 VDC, gold-plated contacts, surface-mount right-angle, solder termination.

$1.1800Ref. price · indicative, final on quote
CUI Devices SJ2-35564A-SMT-TR datasheet (PDF)
RoHSROHS3 Compliant
SeriesSJ2
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

SJ2-35564A-SMT-TR key specifications
ParameterValue
SeriesSJ2
MountingSurface Mount, Right Angle
Connector typePhone Jack
Voltage - rated12VDC
Current rating1 A
Operating temperature-25°C~85°C
Body colorBlack
Contact materialCopper Alloy
Housing materialPolyamide (PA10T), Nylon 10T
Mating length (Depth)0.551\" (14.00mm)
Contact material - platingGold
GenderFemale

All specifications

SJ2-35564A-SMT-TR additional specifications
ParameterValue
PackageTape & Reel (TR); Cut Tape (CT)
TerminationSolder
Signal lines5 Conductor (TRRRS)
Actual diameter0.142\" (3.60mm)
Internal switchDoes Not Contain Switch
Number of positions (Contacts)5 Conductors, 5 Contacts
Industry recognized mating diameter3.50mm (0.141\", 1/8\", Mini Plug) - Headphone

Product details

3.50 mm phone jack, 5-conductor TRRRS

The SJ2-35564A-SMT-TR is the 5-conductor (TRRRS) member of CUI Devices' SJ2 phone jack series, accepting a 3.50 mm (1/8") mini plug. Gold-plated contacts rated 1 A at 12 VDC; the housing is black polyamide (PA10T) and the jack mounts surface-mount right-angle with solder termination.

5-conductor vs 4-conductor siblings

Within the SJ2-35 base series the SJ2-35564A-SMT-TR carries 5 conductors (TRRRS) while the SJ2-3544A-SMT-TR and SJ2-3514A-SMT-TR each carry 4 conductors (TRRS) — the 3.50 mm mating diameter, 1 A current rating, and SMT right-angle footprint are shared across the three.

Frequently asked questions

Where can I buy SJ2-35564A-SMT-TR and how do I get a price?

SJ2-35564A-SMT-TR is available in Tape & Reel or Cut Tape packaging. Request a quote for current pricing and lead time.

What compliance documentation does CUI Devices provide for SJ2-35564A-SMT-TR?

The SJ2-35564A-SMT-TR is ROHS3 Compliant.
