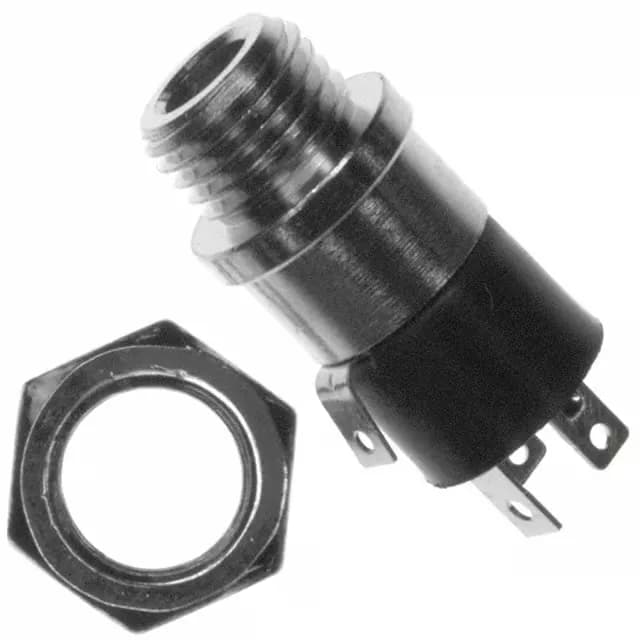

CUI Devices phone jack, order code SJ5-43502PM, female, 4 conductors (TRRS), 3.50 mm industry mating diameter, panel mount, solder eyelet termination, unshielded, 1 A, 34 VAC/DC.
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Connector type | Phone Jack |
| Voltage - rated | 34VAC/DC |
| Current rating | 1 A |
| Operating temperature | -20°C~60°C |
| Body color | Silver, Black |
| Body material | Brass |
| Contact material | Copper Alloy |
| Housing material | Polybutylene Terephthalate (PBT) |
| Contact material - plating | Nickel |
| Gender | Female |
| Package | Box |
| Parameter | Value |
|---|---|
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Signal lines | Stereo (4 Conductor, TRRS) |
| Actual diameter | 0.142\" (3.60mm) |
| Panel hole size | 0.276\" (7.00mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 4 Conductors, 4 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
The SJ5-43502PM is a 4-conductor (TRRS) phone jack from CUI Devices, designed for panel mounting with solder eyelet termination. It accepts a standard 3.50 mm (1/8") mini plug and is rated 1 A at 34 VAC/DC. The unshielded brass body with nickel-plated copper alloy contacts suits fixed-installation audio applications where a metal-shell enclosure provides the shielding. The panel hole size is 0.276" (7.00 mm).
