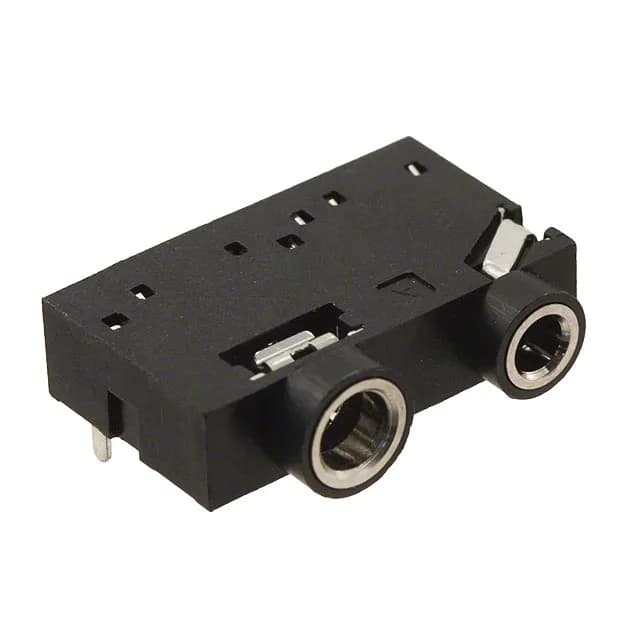

CUI Devices SJD1-3201-54 dual phone jack, female, 2 sets of 3 conductors (stereo, TRS), 2.50 mm industry-recognized mating diameter, 1 A, 12 VDC, through-hole right-angle, solder termination, unshielded, tin-plated contacts.
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Phone Jack, Dual |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -20°C~85°C |
| Body color | Black |
| Contact material | Brass; Copper Alloy |
| Housing material | Polybutylene Terephthalate (PBT) |
| Contact material - plating | Tin |
| Gender | Female |
| Package | Bag |
| Features | Board Guide |
| Parameter | Value |
|---|---|
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Stereo (3 Conductor, TRS) |
| Actual diameter | 0.102\" (2.60mm), 0.142\" (3.60mm) |
| Internal switch | Single Switch, Two Switches |
| Number of positions (Contacts) | 2 Sets of 3 Conductors, 9 Contacts |
| Industry recognized mating diameter | 2.50mm (3/32\", Sub Mini, Miniature) - Headphone |
The SJD1-3201-54 is a dual stereo phone jack from CUI Devices, accepting a 2.50 mm (3/32", sub-miniature) plug per channel — the two jacks share a single through-hole right-angle body with board guide. Each of the two 3-conductor (TRS) channels carries 1 A at 12 VDC; the tin-plated brass and copper alloy contacts mate with standard 2.5 mm headphone plugs.
