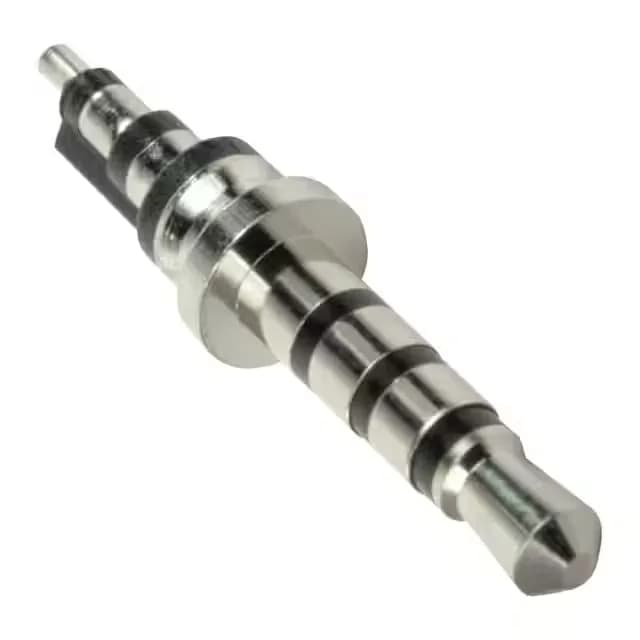

CUI Devices phone plug, order code SP-2541, male, 2.50mm (3/32") industry diameter, 4 conductors (TRRS), 1 A, 12 VDC, nickel-plated brass contacts, solder termination, free-hanging in-line, unshielded.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Phone Plug |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -25°C~70°C |
| Body color | Silver |
| Body material | Brass |
| Contact material | Brass |
| Insulation color | Black |
| Mating length (Depth) | 0.433\" (11.00mm) |
| Contact material - plating | Nickel |
| Gender | Male |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Stereo (4 Conductor, TRRS) |
| Actual diameter | 0.091\" (2.30mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 4 Conductors, 4 Contacts |
| Industry recognized mating diameter | 2.50mm (0.094\", 3/32\", Sub Mini, Miniature) - Headphone |
The SP-2541 is a 2.50 mm (3/32") industry-diameter phone plug from CUI Devices, with a male plug body and four conductors arranged as a TRRS (tip-ring-ring-sleeve) contact set. Termination is solder-only — the brass contacts are nickel-plated and rated for 1 A at 12 VDC. The plug has no internal switch and is unshielded, which keeps the body diameter at 0.091" (2.30 mm) for a slim in-line fit.
SP-2541 is orderable under the listed part number. Pricing and lead time are confirmed per RFQ against the required quantity.
