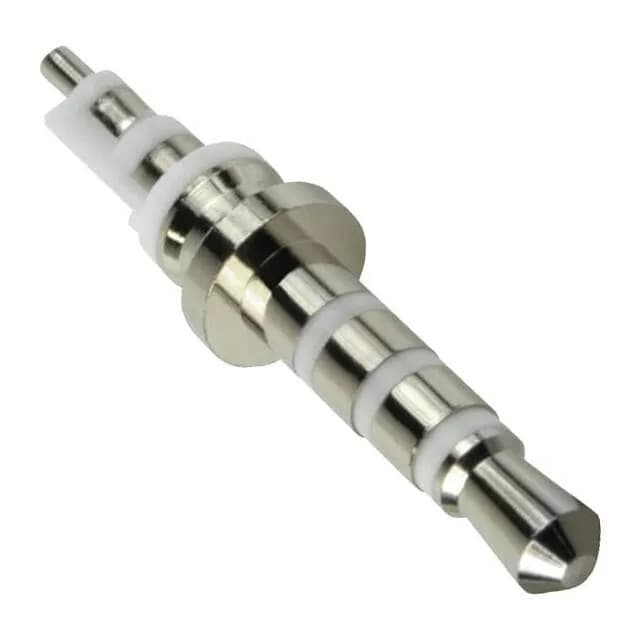

CUI Devices phone plug, order code SP-2541-WT, male, 4 conductors (TRRS), 2.50 mm industry mating diameter, 1 A, 12 VDC, nickel-plated contacts, free hanging in-line, solder termination, unshielded.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Phone Plug |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -25°C~70°C |
| Body color | Silver |
| Body material | Brass |
| Contact material | Brass |
| Insulation color | White |
| Mating length (Depth) | 0.433\" (11.00mm) |
| Contact material - plating | Nickel |
| Gender | Male |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Stereo (4 Conductor, TRRS) |
| Actual diameter | 0.091\" (2.30mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 4 Conductors, 4 Contacts |
| Industry recognized mating diameter | 2.50mm (0.094\", 3/32\", Sub Mini, Miniature) - Headphone |
The SP-2541-WT is a 4-conductor (TRRS) phone plug from CUI Devices, using the 2.50 mm industry-recognized mating diameter for sub-miniature headphone applications. Rated 1 A at 12 VDC with nickel-plated brass contacts and a brass body, it terminates via solder and mounts free-hanging in-line.
The SP-2541-WT is RoHS3 compliant.
