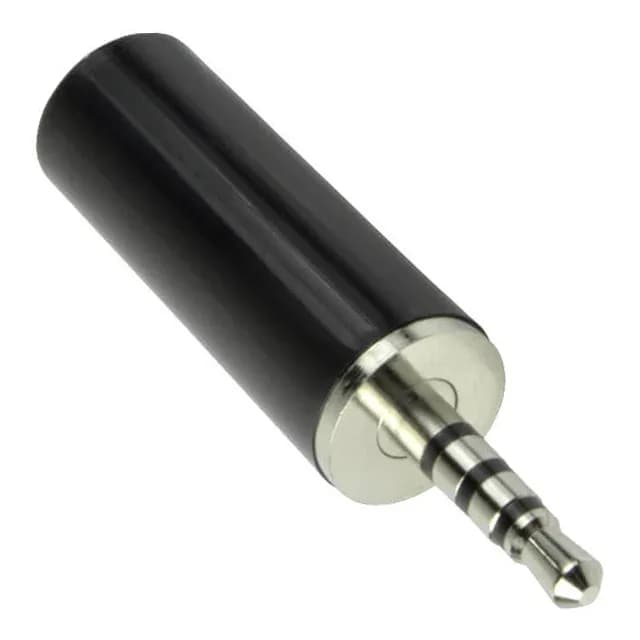

CUI Devices SP-2544A
MPNSP-2544A
Active
AUDIO PLUG, 2.5 MM, STRAIGHT, 4
$2.0600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Phone Plug |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Cable opening | 0.157\" (4.00mm) |
| Operating temperature | -25°C~70°C |
| Body color | Silver, Black |
| Body material | Brass |
| Contact material | Brass |
| Housing material | Acrylonitrile Butadiene Styrene (ABS) |
| Insulation color | Black |
| Mating length (Depth) | 0.433\" (11.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Contact material - plating | Nickel |
| Gender | Male |
| Package | Bag |
| Features | Cover |
| Includes | 2 pcs - 1 Connector, 1 Cover |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Stereo (4 Conductor, TRRS) |
| Actual diameter | 0.091\" (2.30mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 4 Conductors, 4 Contacts |
| Industry recognized mating diameter | 2.50mm (0.094\", 3/32\", Sub Mini, Miniature) - Headphone |
