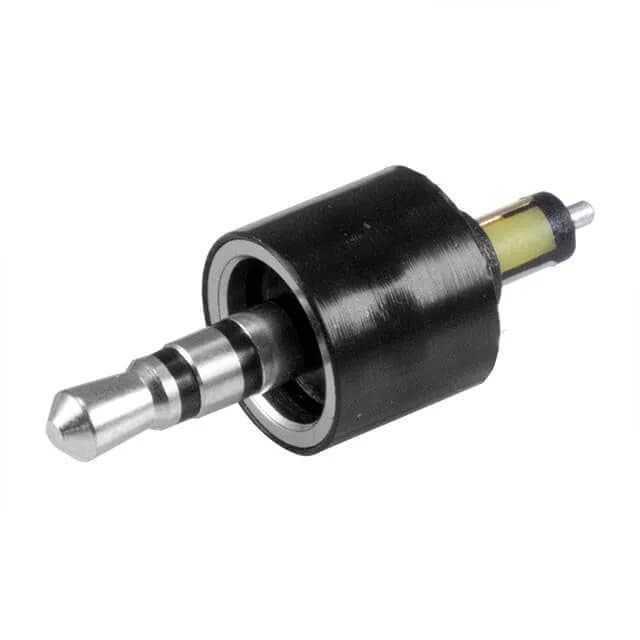

CUI Devices SP-25503-OM
MPNSP-25503-OM
Active
$5.2899Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SP |
| Mounting | Free Hanging (In-Line) |
| Connector type | Phone Plug |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -25°C~70°C |
| Body color | Silver |
| Body material | Brass |
| Contact material | Brass, Phosphor Bronze |
| Insulation color | Black |
| Mating length (Depth) | 0.303\" (7.70mm) |
| Contact material - plating | Gold, Nickel |
All specifications
| Parameter | Value |
|---|---|
| Gender | Male |
| Package | Bag |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | 6 Conductor |
| Actual diameter | 0.091\" (2.30mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 6 Conductors, 6 Contacts |
| Industry recognized mating diameter | 2.50mm (0.094\", 3/32\", Sub Mini, Miniature) - Headphone |
