CUI Devices SP-3530 — Audio Connectors

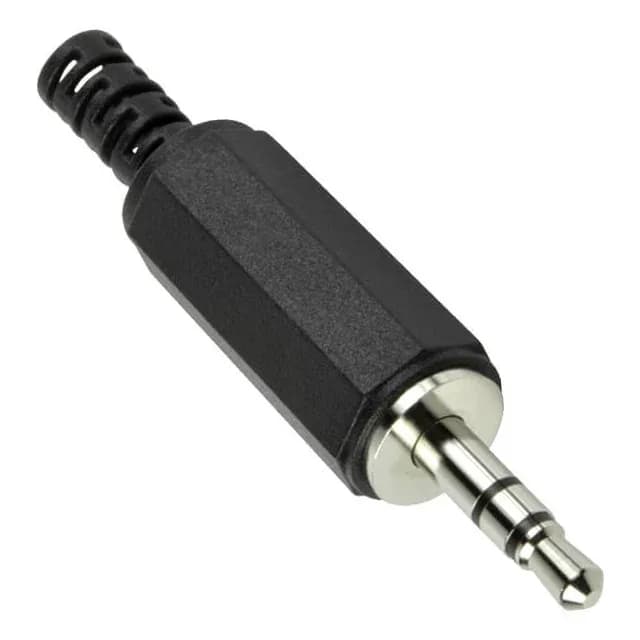

CUI Devices SP-3530 Audio Plug, 3.5mm, 3 Conductor, Crimp

MPNSP-3530
Active

CUI Devices phone plug, order code SP-3530, male, 3.5 mm (1/8", mini plug), 3 conductors (TRS), 1 A, 12 VDC, nickel-plated contacts, crimp termination, free hanging (in-line), unshielded, includes cover and strain relief.

$1.3600Ref. price · indicative, final on quote
CUI Devices SP-3530 datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

SP-3530 key specifications
ParameterValue
MountingFree Hanging (In-Line)
Connector typePhone Plug
Voltage - rated12VDC
Current rating1 A
Cable opening0.157\" (4.00mm)
Operating temperature-25°C~70°C
Body colorSilver, Black
Body materialBrass
Contact materialBrass
Housing materialAcrylonitrile Butadiene Styrene (ABS)
Insulation colorBlack
Mating length (Depth)0.551\" (14.00mm)

All specifications

SP-3530 additional specifications
ParameterValue
Contact material - platingNickel
GenderMale
PackageBag
FeaturesCover, Strain Relief
Includes2 pcs - 1 Connector, 1 Cover
ShieldingUnshielded
TerminationCrimp
Signal linesStereo (3 Conductor, TRS)
Actual diameter0.126\" (3.20mm)
Internal switchDoes Not Contain Switch
Number of positions (Contacts)3 Conductors, 3 Contacts
Industry recognized mating diameter3.50mm (0.141\", 1/8\", Mini Plug) - Headphone

Product details

Crimp termination, 3.5 mm TRS plug

The SP-3530 is a male 3.5 mm (1/8", mini plug) phone plug from CUI Devices, configured as a 3-conductor TRS (tip-ring-sleeve) connector for stereo audio signals. Termination is crimp-style, suited for field assembly or harness production; the connector ships with a cover and strain relief. Rated 1 A at 12 VDC, with nickel-plated brass contacts and an ABS housing.

Position within the SP-35xx series

The SP-3530 is the 3-conductor crimp variant in CUI Devices' SP-35xx 3.5 mm phone plug family. The SP-3540A shares the same 3.5 mm diameter, 1 A rating, and 0.551" (14.00 mm) mating length but adds a fourth conductor (TRRS) and uses solder termination with a larger 0.217" (5.50 mm) cable opening. The SP-3533-WT is a solder-terminated 3-conductor version with a brass housing instead of ABS.

Frequently asked questions

How does SP-3530 differ from SP-3540A?

SP-3540A is a 4-conductor (TRRS) solder-terminated plug with a 0.217" (5.50 mm) cable opening; SP-3530 is a 3-conductor (TRS) crimp plug with a 0.157" (4.00 mm) cable opening. Both share the same 3.5 mm diameter, 1 A rating, and 0.551" (14.00 mm) mating length.

What compliance documentation is available for SP-3530?

CUI Devices lists SP-3530 as RoHS3 compliant. No UL or IEC certification is cited in the product record.
