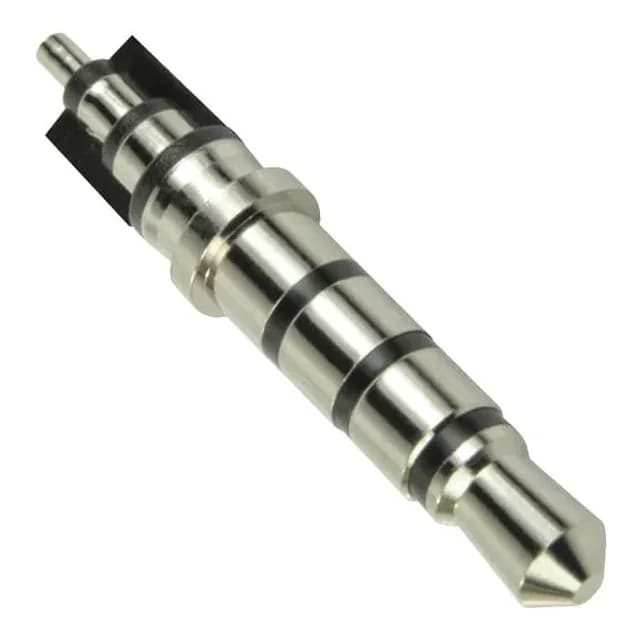

CUI Devices SP-3544
MPNSP-3544
Active
AUDIO PLUG, 3.5 MM, STRAIGHT, 4
$0.6700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Phone Plug |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -25°C~70°C |
| Body color | Silver |
| Body material | Brass |
| Contact material | Brass |
| Housing material | Brass |
| Insulation color | Black |
| Mating length (Depth) | 0.551\" (14.00mm) |
| Contact material - plating | Nickel |
All specifications
| Parameter | Value |
|---|---|
| Gender | Male |
| Package | Bag |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Stereo (4 Conductor, TRRS) |
| Actual diameter | 0.138\" (3.50mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 4 Conductors, 4 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
