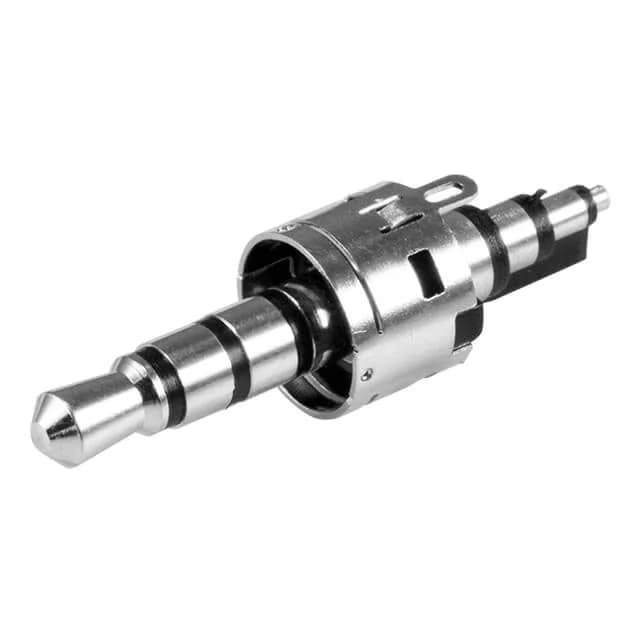

CUI Devices SP-35501-OM
MPNSP-35501-OM
Active
$2.1400Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SP |
| Mounting | Free Hanging (In-Line) |
| Connector type | Phone Plug |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -25°C ~ 70°C |
| Body color | Silver |
| Body material | Brass |
| Contact material | Brass |
| Insulation color | Black |
| Mating length (Depth) | 0.472\" (12.00mm) |
| Contact material - plating | Nickel |
All specifications
| Parameter | Value |
|---|---|
| Gender | Male |
| Package | Bag |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | 5 Conductor (TRRRS) |
| Actual diameter | 0.126\" (3.20mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 5 Conductors, 5 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
