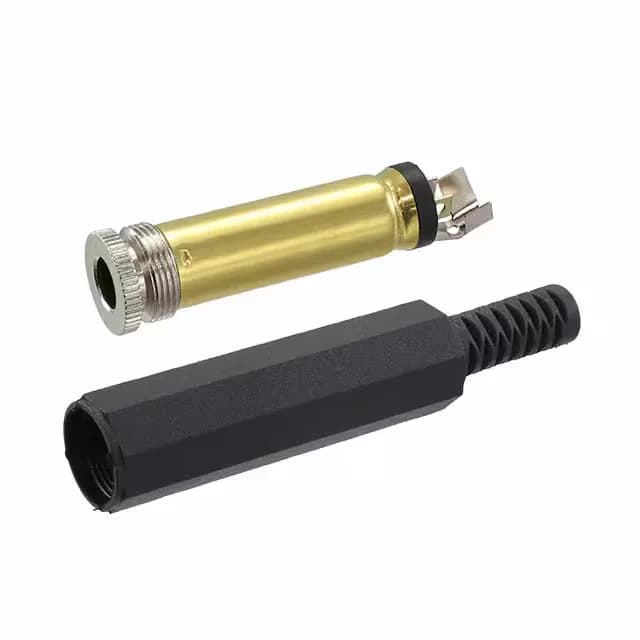

CUI Devices SR-6330
MPNSR-6330
Active
AUDIO JACK, 6.3 MM, STRAIGHT, 3
$3.0800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Phone Jack |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Cable opening | 0.256\" (6.50mm) |
| Operating temperature | -25°C~70°C |
| Body color | Silver, Black |
| Body material | Brass |
| Contact material | Brass, Phosphor Bronze |
| Housing material | Polyvinyl Chloride (PVC) |
| Insulation color | Black |
| Mating length (Depth) | 1.220\" (31.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Contact material - plating | Gold |
| Gender | Female |
| Package | Bag |
| Features | Cover, Strain Relief |
| Includes | 2 pcs - 1 Connector, 1 Cover |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Stereo (3 Conductor, TRS) |
| Actual diameter | 0.253\" (6.43mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 3 Conductors, 3 Contacts |
| Industry recognized mating diameter | 6.35mm (0.250\", 1/4\") - Headphone |
