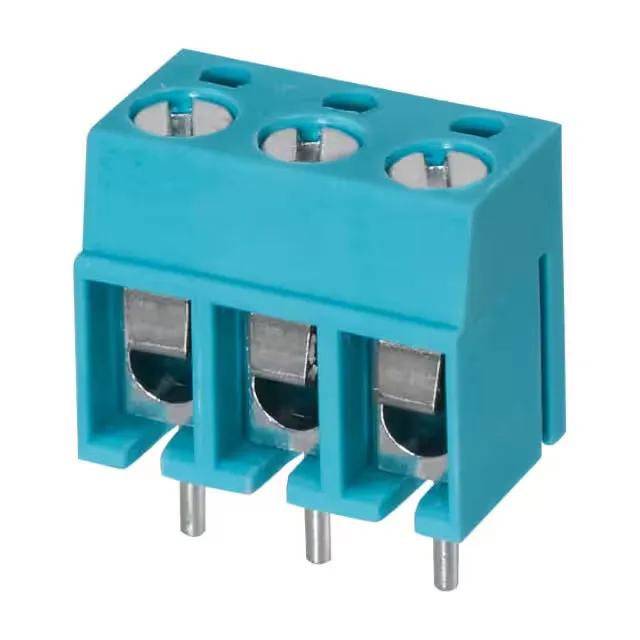

CUI Devices TB001-500-03BE

CUI Devices TB001-500-03BE

MPNTB001-500-03BE
Active

TERMINAL BLOCK, SCREW TYPE, 5.00

$0.77Ref. price · indicative, final on quote
CUI Devices TB001-500-03BE datasheet (PDF)
RoHSROHS3 Compliant
SeriesTB001-500
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

TB001-500-03BE key specifications
ParameterValue
SeriesTB001-500
MountingThrough Hole
Voltage300 V
Current15 A
Wire gauge12-22 AWG
Wire terminationScrew - Leaf Spring, Wire Guard
Operating temperature-40°C ~ 105°C
ColorBlue
Housing materialPolybutylene Terephthalate (PBT)
Clamp material - platingSteel, Stainless
Screw material - platingSteel - Zinc Plated
Contact material - platingCopper Alloy - Tin Plated

All specifications

TB001-500-03BE additional specifications
ParameterValue
Pitch0.197\" (5.00mm)
PackageBag
FeaturesInterlocking (Side)
Screw threadM3
Torque - screw0.5 Nm (4.4 Lb-In)
Number of levels1
Mating orientationHorizontal with Board
Positions per level3
