CUI Devices TB002V-500-02BE — Wire-to-Board Headers

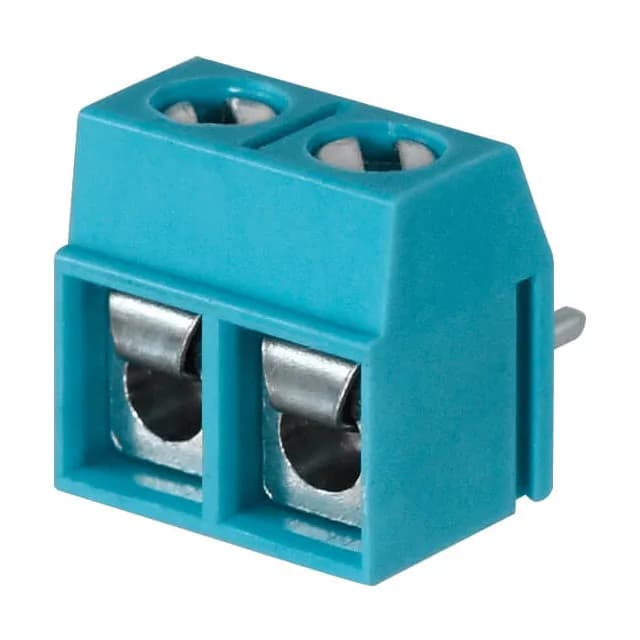

CUI Devices TB002V-500-02BE

MPNTB002V-500-02BE
Active

TERMINAL BLOCK, SCREW TYPE, 5.00

$0.6100Ref. price · indicative, final on quote
CUI Devices TB002V-500-02BE datasheet (PDF)
RoHSROHS3 Compliant
SeriesTB002V-500
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

TB002V-500-02BE key specifications
ParameterValue
SeriesTB002V-500
MountingThrough Hole
Voltage300 V
Current15 A
Wire gauge12-22 AWG
Wire terminationScrew - Leaf Spring, Wire Guard
Operating temperature-40°C ~ 105°C
ColorBlue
Housing materialPolybutylene Terephthalate (PBT)
Clamp material - platingSteel, Stainless
Screw material - platingSteel - Zinc Plated
Contact material - platingCopper Alloy - Tin Plated

All specifications

TB002V-500-02BE additional specifications
ParameterValue
Pitch0.197\" (5.00mm)
PackageBag
FeaturesInterlocking (Side)
Screw threadM2.5
Torque - screw0.4 Nm (3.5 Lb-In)
Number of levels1
Mating orientationVertical with Board
Positions per level2
