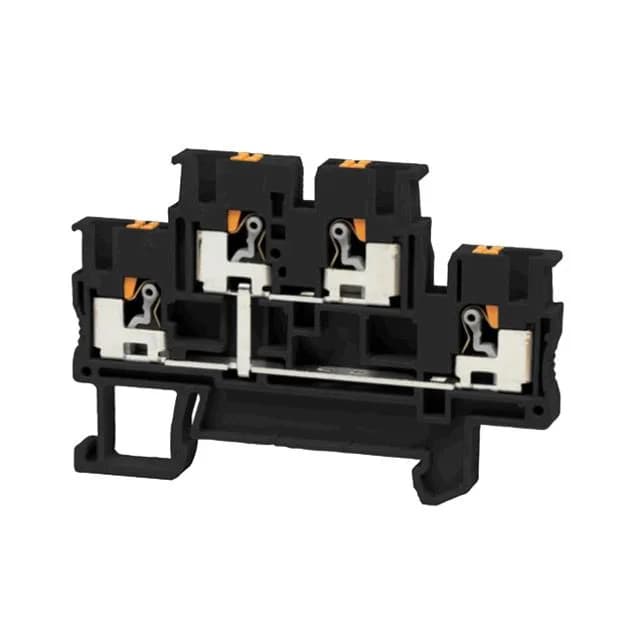

CUI Devices TBDR-12-15-BK
MPNTBDR-12-15-BK
Active
1.5 MM WIRE SIZE, UL94 V-0, BLAC
$2.5000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTBDR
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Feed Through |
| Series | TBDR |
| Voltage - UL | 300V |
| Voltage - IEC | 500V |
| Current - UL | 15 A |
| Current - IEC | 16 A |
| Terminal - width | 3.5mm |
| Wire gauge or range - AWG | 14-26 AWG |
| Wire gauge or range - mm2 | 0.2-1.5mm² |
| Color | Black |
| Material - insulation | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Number of levels | 2; Connected |
| Stripping length | 8mm ~ 10mm |
| Termination style | Push In, Spring |
| Positions | 4 |
