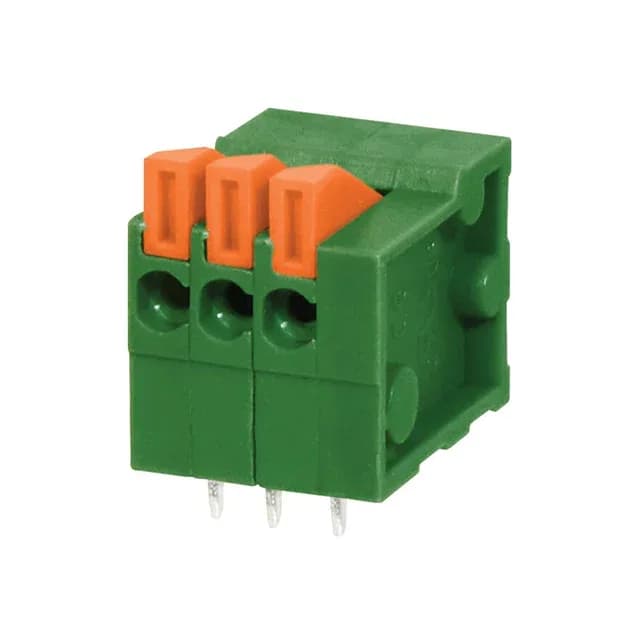

CUI Devices TBL003-254-03GR-2OR
MPNTBL003-254-03GR-2OR
Active
TERMINAL BLOCK, SCREWLESS, 2.54,
$1.0200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTBL003-254
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TBL003-254 |
| Mounting | Through Hole |
| Voltage | 150 V |
| Current | 2 A |
| Wire gauge | 20-24 AWG |
| Wire termination | Screwless |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Steel, Stainless |
| Contact material - plating | Copper Alloy - Tin Plated |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Interlocking (Side), Lever Actuated |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 3 |
