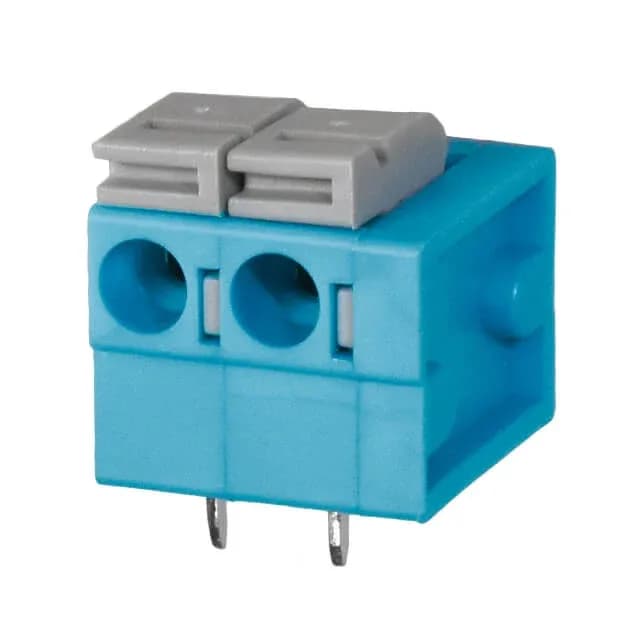

CUI Devices TBL004-508-02BE-2GY
MPNTBL004-508-02BE-2GY
Active
TERMINAL BLOCK, SCREWLESS, 5.08,
$0.6800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTBL004-508
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TBL004-508 |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 10 A |
| Wire gauge | 14-24 AWG |
| Wire termination | Screwless - Push Button Clamp |
| Operating temperature | -40°C ~ 105°C |
| Color | Blue |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Contact material - plating | Copper Alloy - Tin Plated |
| Pitch | 0.200\" (5.08mm) |
| Package | Tray |
| Features | Interlocking (Side), Push Button Actuated |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 2 |
