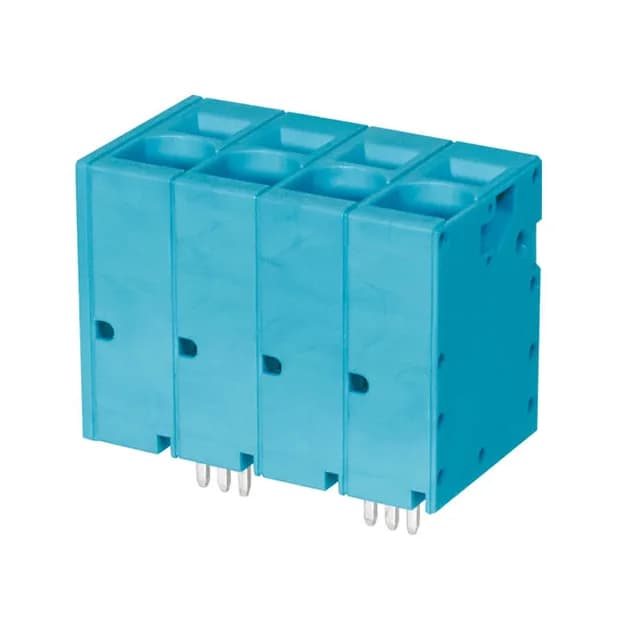

CUI Devices TBL008V-1000-04BE
MPNTBL008V-1000-04BE
Active
TERMINAL BLOCK, SCREWLESS, 10.0,
$5.1800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTBL008V-1000
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TBL008V-1000 |
| Mounting | Through Hole |
| Voltage | 600 V |
| Current | 66 A |
| Wire gauge | 4-18 AWG |
| Wire termination | Screwless - Spring Cage, Tension Clamp |
| Operating temperature | -40°C ~ 105°C |
| Color | Blue |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Contact material - plating | Copper Alloy - Tin Plated |
| Pitch | 0.394\" (10.00mm) |
| Package | Box |
| Features | Interlocking (Side) |
| Number of levels | 1 |
| Mating orientation | Vertical with Board |
| Positions per level | 4 |
